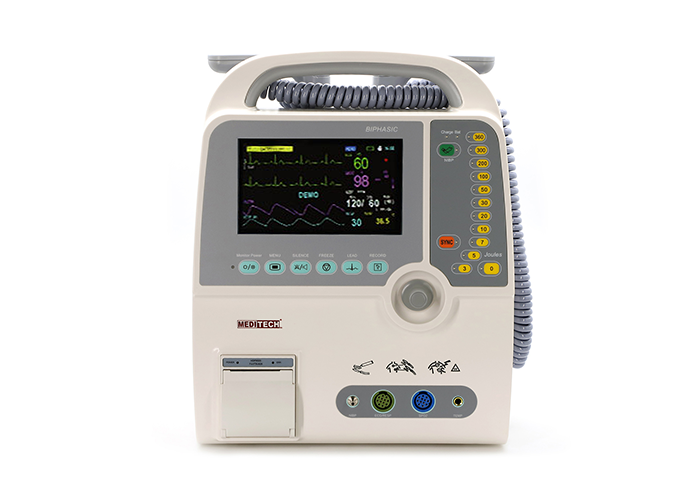

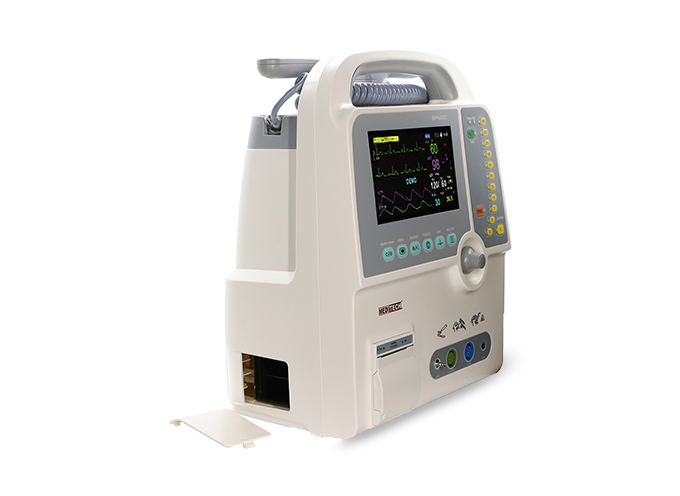

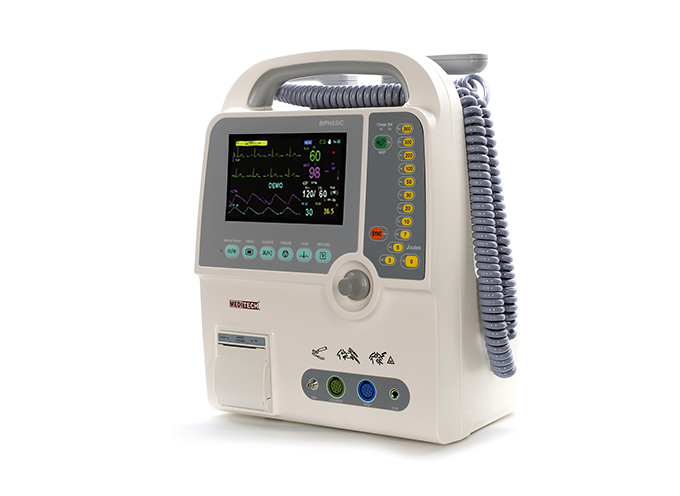

Defi® 9
The Defi® 9 is a compact, robust and lightweight defibrillator with integrated manual defibrillation monitoring.
It is a professional biphasic defibrillator monitor suitable for hospitals and clinics

Multi-parameter patient monitor ECG.SpO2.NIBP.RESP. PR.TEMP




The Defi® 9 is a compact, robust and lightweight defibrillator with integrated manual defibrillation monitoring.
It is a professional biphasic defibrillator monitor suitable for hospitals and clinics

Multi-parameter patient monitor ECG.SpO2.NIBP.RESP. PR.TEMP




Read More
High resolution 7 inch TFT color display
Energy selection: 0,3,5,7,10,20,30,50,100,200,300,360 Joule
Charge time: Maximum 10 seconds to 360J
Standard adult/pediatric paddles Reusable external adult external paddles
Manual mode
Output waveform: Biphasic technology
Standard Parameter is ECG: I II III AVR AVL AVF V
Pulse rate: Pulse range: 0-300bpm Pulse accuracy: ±2bpm
Thermal printer

Options:
SpO2, AED, Trolley, Carrying case

Defibrillator:
Defibrillator type Manual Synchronized A Synchronized
Output waveform Biphasic technology
Energy accuracy ∠+1%
Energy selection 0.3.5.7.10.20.30.50.100.200.300.360 joules (nominal at a resistance of 50)
Recharge time Maximum 8 seconds to 360 joules
Standard adult/pediatric electrodes: reusable external electrodes for adults (integrated electrodes for children)

Patient monitor:
7'' TFT display

ECG:
ECG lead: ⅠⅡⅢ a VR a VL a VF V1-V6

Pulse Rate:
Pulse range: 0-300bpm Pulse accuracy: ±2bpm

NIBP:
Method: automatic oscillation
Working mode: manual/automatic
Measurement: adult: 10-250mmHg
Ement: pediatric: 10-200mmHg
Ement: neonatal: 10-135mmHg

TEMP:
Measuring range: 20-45。C

SpO2:
Pulse oximetry (spO2)
Display: spO2 value pulse histogram waveform pulse
Range: 0~99% for adult, pediatric and neonatal patients
Probe: standard finger clip for adult

AED mode (option)
AED function: automatic analysis and charging x3 with programmable on-screen automatic energy level selection and voice prompts
Shock Capable Rhythms: Ventricular fibrillation with amplitude > =200uV Ventricular tachycardia with rates > =140bpm and QRS complex wave duration > =140ms.
Charge control: front panel, push button on paddle.
Prompts: Voice and visual prompts.

Recorder (printer) (option)
Paper: 50mm thermal paper.
Speed: 12.5mm/sec. 25mm/sec. 50mm/sec. User selectable delay of 6 seconds.
Printing method: High resolution thermal print head.
Print Modes: Manual or automatic, user configurable.
On/off control: front panel and paddle.
Automatic function: 9-second recording triggered by alarm activation, defibrillator charge or defibrillator discharge.


Standard:

ECG Cable (5 Leads) ...... 1Pcs
SpO2 Sensor    ................ 1Pcs
TEMP probe     ................ 1Pcs
NIBP Cuff   ...................... 1Pcs
NIBP Tube   ....................  1Pcs
Ground Wire    ................. 1Pcs
Battery   ........................... 2Pcs
Power cable  .................... 1Pcs
Fuse  ................................ 2Pcs
Cleaning Cloth  .................1Pcs

Options:

NIBP Cuff (infant 8 - 14 cm 5/Bag)
Paper Role
Thermal printer
Defibrillator Wall mounts (3 Models)
Defibrillator Trolley (5 Models)
Defibrillator carry bag


Product Features

    High resolution 7 inch TFT color display
    Energy selection: 0,3,5,7,10,20,30,50,100,200,300,360 Joule
    Charge time: Maximum 10 seconds to 360J
    Standard adult/pediatric paddles Reusable external adult external paddles
    Manual mode
    Output waveform: Biphasic technology
    Standard Parameter is ECG: I II III AVR AVL AVF V
    Pulse rate: Pulse range: 0-300bpm Pulse accuracy: ±2bpm
    Thermal printer

    Options:
    SpO2, AED, Trolley, Carrying case

Product Specifications

    Defibrillator:
    Defibrillator type Manual Synchronized A Synchronized
    Output waveform Biphasic technology
    Energy accuracy ∠+1%
    Energy selection 0.3.5.7.10.20.30.50.100.200.300.360 joules (nominal at a resistance of 50)
    Recharge time Maximum 8 seconds to 360 joules
    Standard adult/pediatric electrodes: reusable external electrodes for adults (integrated electrodes for children)

    Patient monitor:
    7'' TFT display

    ECG:
    ECG lead: ⅠⅡⅢ a VR a VL a VF V1-V6

    Pulse Rate:
    Pulse range: 0-300bpm Pulse accuracy: ±2bpm

    NIBP:
    Method: automatic oscillation
    Working mode: manual/automatic
    Measurement: adult: 10-250mmHg
    Ement: pediatric: 10-200mmHg
    Ement: neonatal: 10-135mmHg

    TEMP:
    Measuring range: 20-45。C

    SpO2:
    Pulse oximetry (spO2)
    Display: spO2 value pulse histogram waveform pulse
    Range: 0~99% for adult, pediatric and neonatal patients
    Probe: standard finger clip for adult

    AED mode (option)
    AED function: automatic analysis and charging x3 with programmable on-screen automatic energy level selection and voice prompts
    Shock Capable Rhythms: Ventricular fibrillation with amplitude > =200uV Ventricular tachycardia with rates > =140bpm and QRS complex wave duration > =140ms.
    Charge control: front panel, push button on paddle.
    Prompts: Voice and visual prompts.

    Recorder (printer) (option)
    Paper: 50mm thermal paper.
    Speed: 12.5mm/sec. 25mm/sec. 50mm/sec. User selectable delay of 6 seconds.
    Printing method: High resolution thermal print head.
    Print Modes: Manual or automatic, user configurable.
    On/off control: front panel and paddle.
    Automatic function: 9-second recording triggered by alarm activation, defibrillator charge or defibrillator discharge.
