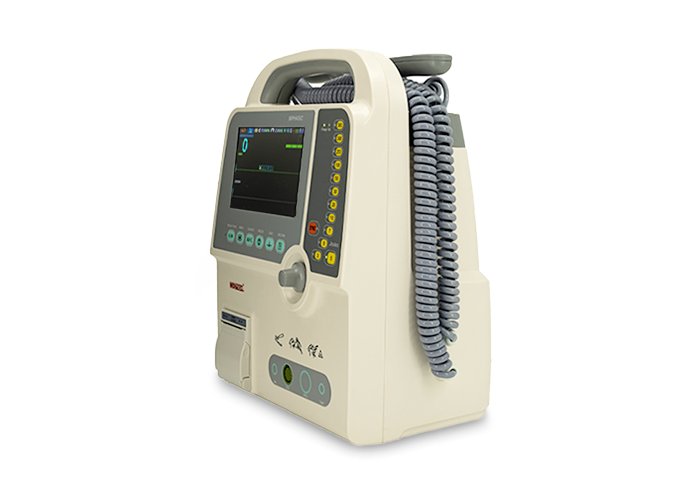

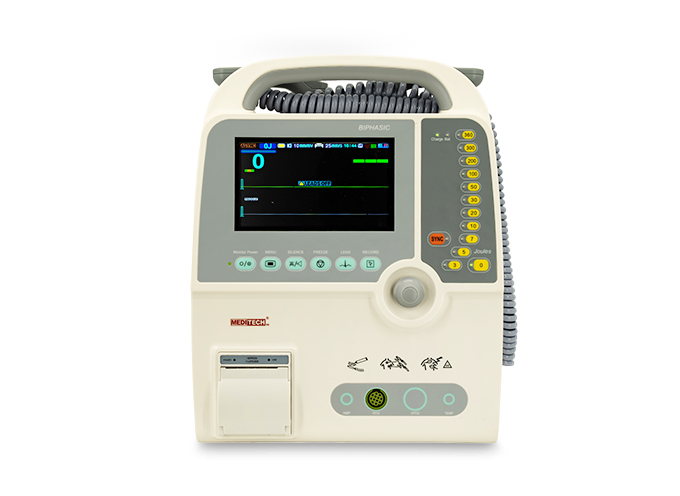

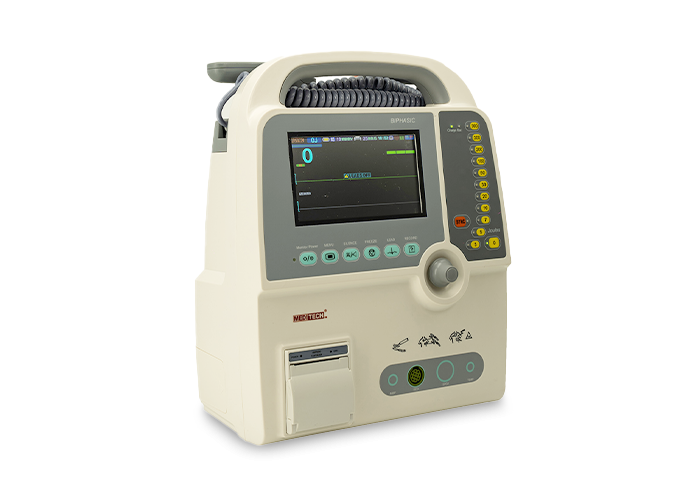

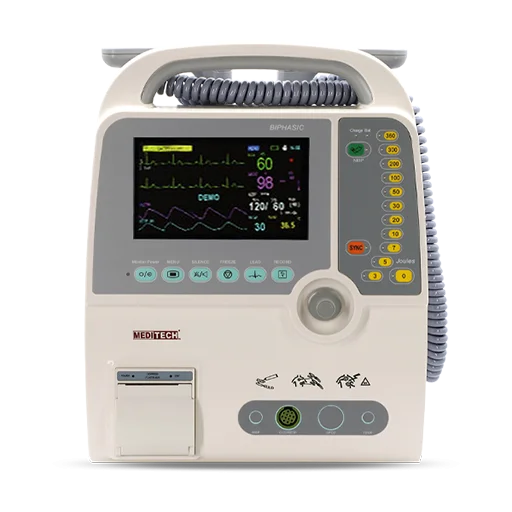

Defi® 8
Defi® 8 Plus is a compact, robust and lightweight defibrillator with integrated monitoring, manual defibrillation and AED (option).

It is a professional biphasic defibrillator monitor suitable for hospitals and clinics
Defi® 8 Plus is a compact, robust and lightweight defibrillator with integrated monitoring, manual defibrillation and AED (option).

It is a professional biphasic defibrillator monitor suitable for hospitals and clinics
Read More
High resolution 7 inch TFT color display
Energy selection: 0,3,5,7,10,20,30,50,100,200,300,360 Joule
Charge time: Maximum 10 seconds to 360J
Standard adult/pediatric paddles Reusable external adult external paddles
Manual mode
Output waveform: Biphasic technology
Standard Parameter is ECG: I II III AVR AVL AVF V
Pulse rate: Pulse range: 0-300bpm Pulse accuracy: ±2bpm
Thermal printer
NIBP:
Method: automatic oscillation
Working mode: manual/automatic
Measurement:
adult: 10-250mmHg
pediatric: 10-200mmHg
neonatal: 10-135mmHg
TEMP: measuring range: 20-45
SpO2: SpO2 value, pulse histogram, wavefom, pulse
Thermal printer

Options:
AED, Trolley, Carrying case

Standard parameters & configuration
Defi8: ECG . PR.DEFIBRILLATOR

Technical data

Defibrillator
Defibrillator type Manual Synchronized Asynchronized
Output waveform Biphasic technology
Energy accuracy < +1%
Energy Selection 0.3.5.7.10.20.30.50.100.200.300.360 joules (nominal at resistance of 50)
Charging time Maximum 8 seconds to 360 joules

Standard adult/pediatric paddles
Reusable external adult paddles (pediatric paddles integrated)

Power supply requirements
AC power supply 110V 60 Hz /220V50 Hz
Vehicle voltage DC 12V

Internal buffer battery
Battery type Rechargeable lead-acid battery/lithium battery (optional)
Charging time: At least 4 hours for a full charge
Charge the battery during AC power supply operation of the device.
Charge indicator / Low battery indicator Red LED
Battery capacity: 100% of battery allows 120 minutes of monitoring and 30 discharges at 360 joules.

Display
LED Dimensions 7'diagonal {155mm*88mm}
Type High resolution true color graphic LED
Resolution 480X234

ECG
ECG line: I II III AVR AVL AVF V1 V6 GND
S-T segment analysis: -2.0/2.0mv
Arrhythmia analysis: yes
Protection: with stand 4000vAc/50Hz voltage in isolation and work against electrosurgery and defibrillation

Pulse range
Pulse range: 0-255bpm

Pulse oximetry (spO2) Options
Display: SpO2 value pulse histogram waveform pulse
Range: 0~99% for adult, pediatric and neonatal patients
Probe: standard finger clip for adult AED mode (option)
AED function: automatic analysis and charging x3 with programmable automatic energy level selection via on-screen prompts and voice prompts.
Shock capable rhythms: Ventricular fibrillation with amplitude > =200uV Ventricular tachycardia with rates > =140bpm and QRS complex wave duration > =140ms.
Charge control: front panel, press button on paddle.
Prompts: Voice and visual prompts.

Recorder
Paper: 50mm thermal paper.
Speed: 12.5mm/sec. 25mm/sec. 50mm/sec. User selectable delay of 6 seconds.
Printing method: High resolution thermal print head.
Print Modes: Manual or automatic, user configurable.
On/off control: front panel and paddle.

Standard:

EKG Cable (5 Leads) ...... 1Pcs
Ground Wire    ................. 1Pcs
Battery   ........................... 2Pcs
Power cable  ................... 1Pcs
Fuse  ............................... 2Pcs
Cleaning Cloth  ................ 1Pcs
Paper Role
Thermal printer
Defibrillator Wall mounts (3 Models)
Defibrillator Trolley (5 Models)

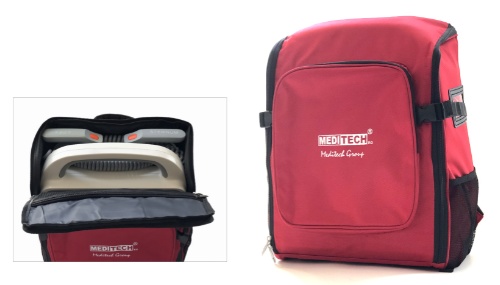

Defibrillator carry bag


Product Features

    High resolution 7 inch TFT color display
    Energy selection: 0,3,5,7,10,20,30,50,100,200,300,360 Joule
    Charge time: Maximum 10 seconds to 360J
    Standard adult/pediatric paddles Reusable external adult external paddles
    Manual mode
    Output waveform: Biphasic technology
    Standard Parameter is ECG: I II III AVR AVL AVF V
    Pulse rate: Pulse range: 0-300bpm Pulse accuracy: ±2bpm
    Thermal printer
    NIBP:
    Method: automatic oscillation
    Working mode: manual/automatic
    Measurement:
    adult: 10-250mmHg
    pediatric: 10-200mmHg
    neonatal: 10-135mmHg
    TEMP: measuring range: 20-45
    SpO2: SpO2 value, pulse histogram, wavefom, pulse
    Thermal printer

    Options:
    AED, Trolley, Carrying case

Product Specifications

    Standard parameters & configuration
    Defi8: ECG . PR.DEFIBRILLATOR

    Technical data

    Defibrillator
    Defibrillator type Manual Synchronized Asynchronized
    Output waveform Biphasic technology
    Energy accuracy < +1%
    Energy Selection 0.3.5.7.10.20.30.50.100.200.300.360 joules (nominal at resistance of 50)
    Charging time Maximum 8 seconds to 360 joules

    Standard adult/pediatric paddles
    Reusable external adult paddles (pediatric paddles integrated)

    Power supply requirements
    AC power supply 110V 60 Hz /220V50 Hz
    Vehicle voltage DC 12V

    Internal buffer battery
    Battery type Rechargeable lead-acid battery/lithium battery (optional)
    Charging time: At least 4 hours for a full charge
    Charge the battery during AC power supply operation of the device.
    Charge indicator / Low battery indicator Red LED
    Battery capacity: 100% of battery allows 120 minutes of monitoring and 30 discharges at 360 joules.

    Display
    LED Dimensions 7'diagonal {155mm*88mm}
    Type High resolution true color graphic LED
    Resolution 480X234

    ECG
    ECG line: I II III AVR AVL AVF V1 V6 GND
    S-T segment analysis: -2.0/2.0mv
    Arrhythmia analysis: yes
    Protection: with stand 4000vAc/50Hz voltage in isolation and work against electrosurgery and defibrillation

    Pulse range
    Pulse range: 0-255bpm

    Pulse oximetry (spO2) Options
    Display: SpO2 value pulse histogram waveform pulse
    Range: 0~99% for adult, pediatric and neonatal patients
    Probe: standard finger clip for adult AED mode (option)
    AED function: automatic analysis and charging x3 with programmable automatic energy level selection via on-screen prompts and voice prompts.
    Shock capable rhythms: Ventricular fibrillation with amplitude > =200uV Ventricular tachycardia with rates > =140bpm and QRS complex wave duration > =140ms.
    Charge control: front panel, press button on paddle.
    Prompts: Voice and visual prompts.

    Recorder
    Paper: 50mm thermal paper.
    Speed: 12.5mm/sec. 25mm/sec. 50mm/sec. User selectable delay of 6 seconds.
    Printing method: High resolution thermal print head.
    Print Modes: Manual or automatic, user configurable.
    On/off control: front panel and paddle.
