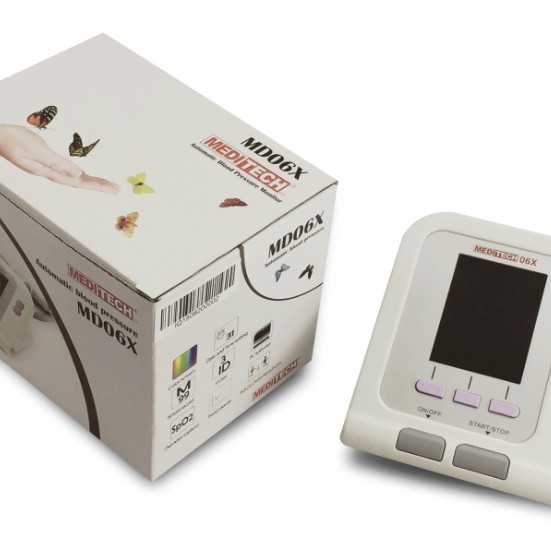

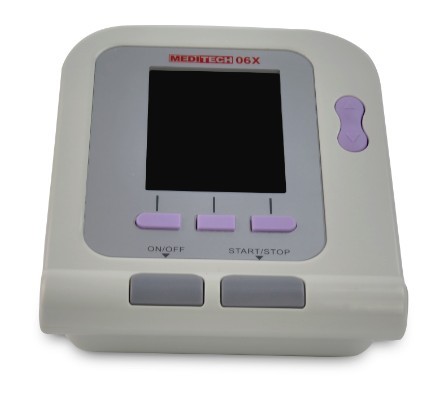

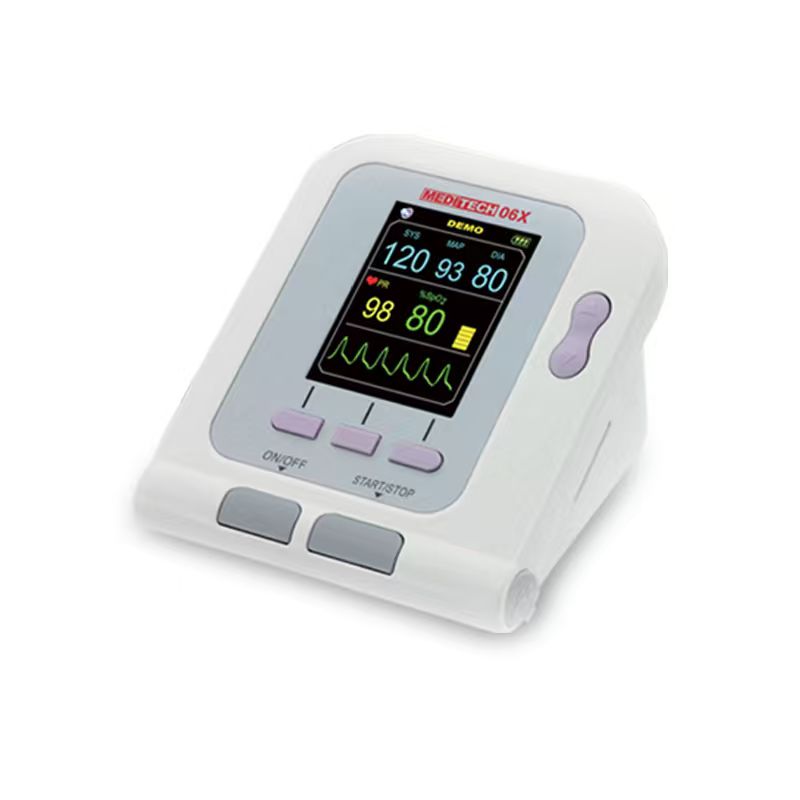

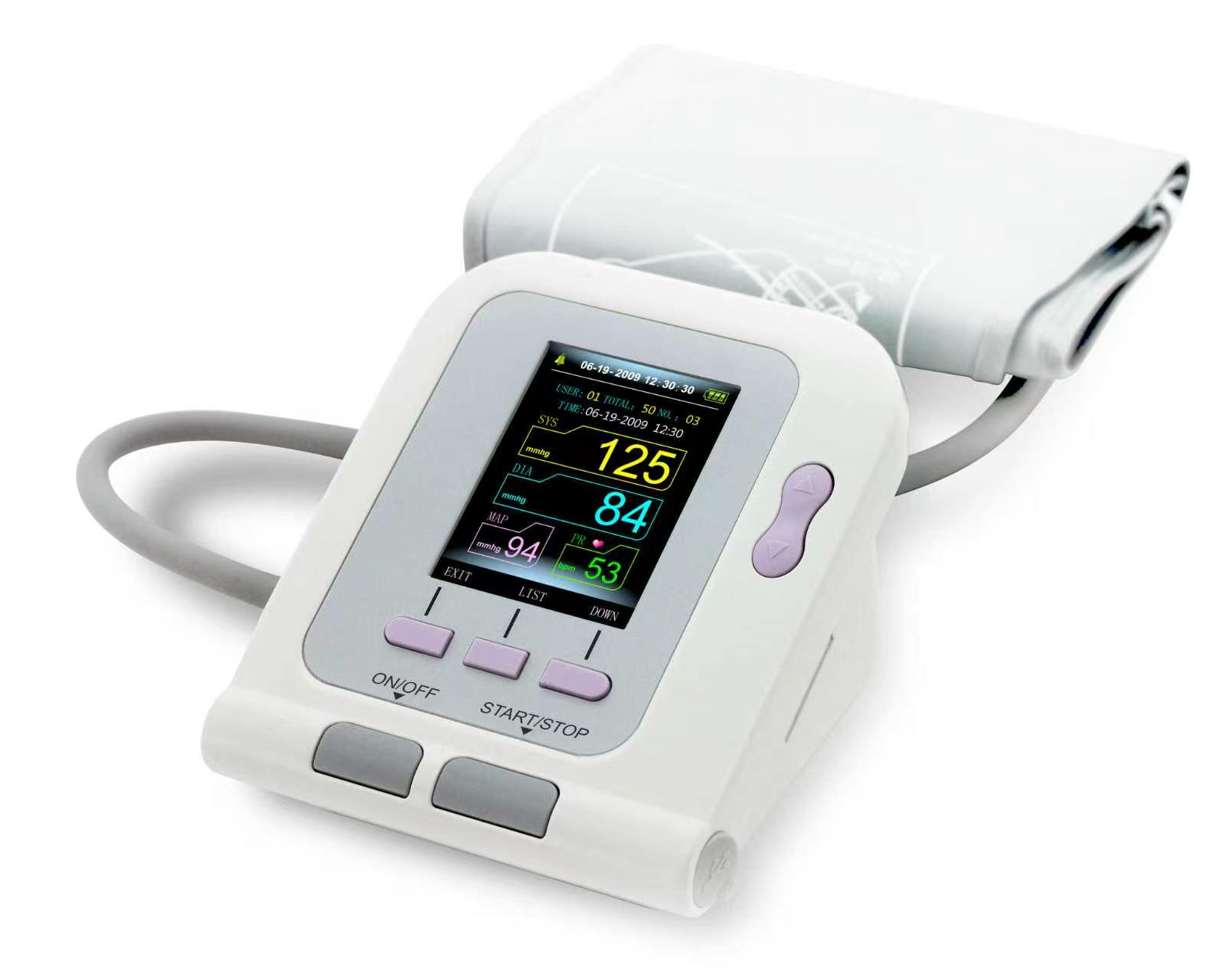

    MD06X

    Portable NIBP & SpO₂ Patient Monitor with 2.8-Inch Color LCD, Adult/Pediatric/Neonatal Support.

    Portable NIBP & SpO₂ Patient Monitor , compact and reliable vital signs monitoring device designed for accurate measurement of non-invasive blood pressure, oxygen saturation (SpO₂), and pulse rate. Supporting adult, pediatric, and neonatal patients, it combines advanced oscillometric blood pressure technology with high-sensitivity SpO₂ monitoring for versatile clinical applications.

    With a lightweight design, clear 2.8-inch color LCD display, adjustable alarm functions, and battery-powered operation, the monitor is ideal for hospitals, clinics, emergency care, transport monitoring, and bedside patient assessment.

    Email this page
    CE CE Marked
    ABS Made by ABS
    LATEX Not made with natural rubber latex

    Product Features

    Discover the advanced capabilities that set our products apart

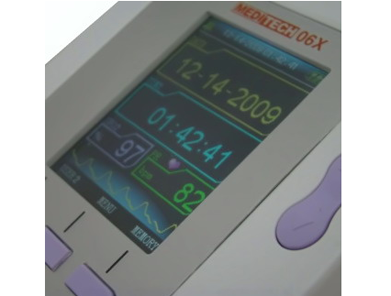

    • 2.8-inch TFT Color Display
      • 320 × 240 pixel resolution for clear visualization of measurements and trends.
    • Multi-Parameter Monitoring
      • NIBP measurement using oscillometric technology with step deflation.
      • SpO₂ monitoring for oxygen saturation assessment.
    • Multi-User Support
      • Supports Adult, Child, and Newborn patient profiles.
      • Stores up to 100 readings per user for 3 users.
    • Automatic Blood Pressure Operation
      • Intelligent cuff inflation and deflation for convenient measurement.
    • Configurable Alarm Function
      • Adjustable BP alarms for abnormal readings.

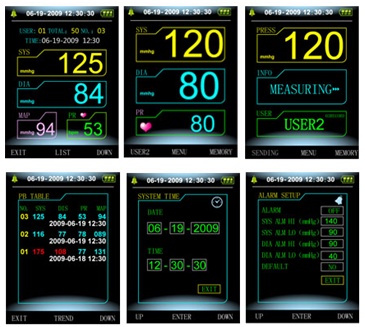

    • Data Review & Management
      • Historical data review through:
        • List display
        • Trend display
    • Flexible Settings
      • Adjustable:
        • Date and time
        • mmHg/kPa units
        • Alarm settings
        • Patient type
        • Language

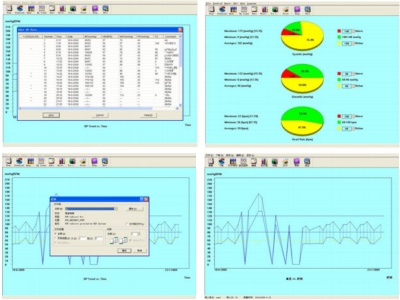

    • USB Connectivity
      • Transfers measurement data to PC software for detailed analysis and reporting.
    • Portable Power Design
      • Operates with AA batteries.
      • Battery status indicator included.

    Product Specifications

    Detailed technical specifications and performance parameters

    SpO₂ Specifications

    Parameter Specification
    SpO₂ Measurement Range 0% ~ 100%
    SpO₂ Accuracy 70% ~ 100%: ±2%
    SpO₂ Accuracy (<70%) Undefined
    Pulse Rate (PR) Accuracy ±2 bpm or ±2% (Whichever is Greater)
    Weak Perfusion Performance Pulse Filling Ratio: 0.4%
    SpO₂ Error Under Weak Perfusion ±4%
    Pulse Rate Error Under Weak Perfusion ±2 bpm or ±2% (Whichever is Greater)
    Optical Sensor Red Light Wavelength 660 nm, 6.65 mW
    Infrared Light Wavelength 880 nm, 6.75 mW
    Display 2.8" Color LCD Display

    NIBP Specifications

    Parameter Specification
    Measurement Method Oscillometric Method
    Working Mode Automatic
    Blood Pressure Measurement Range Adult: 0 ~ 290 mmHg (0 ~ 38.6 kPa)
    Pediatric: 0 ~ 235 mmHg (0 ~ 31.3 kPa)
    Neonatal: 0 ~ 140 mmHg (0 ~ 18.6 kPa)
    Pulse Rate Range 40 ~ 240 bpm
    Inflation Pressure Adult: 160 mmHg
    Pediatric: 120 mmHg
    Neonatal: 70 mmHg

    NIBP Alarm Range

    Patient Type SYS Alarm Range DIA Alarm Range
    Adult 40 ~ 270 mmHg 10 ~ 215 mmHg
    Pediatric 40 ~ 200 mmHg 10 ~ 150 mmHg
    Neonatal 40 ~ 135 mmHg 10 ~ 100 mmHg

    NIBP Accuracy & Protection

    Parameter Specification
    Overpressure Protection Adult: 295 ±5 mmHg
    Pediatric: 240 ±5 mmHg
    Neonatal: 145 ±5 mmHg
    Pressure Resolution 1 mmHg
    Cuff Pressure Accuracy ±3 mmHg
    Standard Compliance Meets YY0667-2008 requirements

    General Specifications

    Parameter Specification
    Operating Temperature +5°C ~ 40°C
    Operating Humidity 15% RH ~ 80% RH
    Storage Temperature -20°C ~ +55°C
    Storage Humidity ≤95% RH
    Atmospheric Pressure 80 kPa ~ 105 kPa
    Battery 4 × AA Alkaline Batteries
    AC Adapter Available Separately
    Main Unit Dimensions 130 × 110 × 80 mm
    Main Unit Weight Approx. 300 g

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories

    Accessory Quantity
    NIBP Cuff (Adult) 1 Pcs
    SpO₂ Cable (Adult) 1 Pcs
    AA Battery 1 Pcs
    USB Cable 1 Pcs

    Optional Accessories

    Accessory
    SpO₂ Cable (Adult Hard Shell Sensor)
    SpO₂ Cable (Adult Soft Shell Sensor)
    SpO₂ Cable (Neonatal Soft Sensor)
    SpO₂ Cable (Pediatric Hard Shell Sensor)
    SpO₂ Cable (Pediatric Soft Shell Sensor)
    SpO₂ Cable (Child Finger Clip)
    SpO₂ Cable (Multi-site Y Type)
    SpO₂ External Cable
    NIBP Cuff (Infant 8–14 cm, 5/Bag)
    NIBP Cuff (Child 13–20 cm, 5/Bag)
    NIBP Cuff (Small Adult 18–26 cm, 5/Bag)
    NIBP Cuff (Adult 26–35 cm, 5/Bag)
    NIBP Cuff (Adult Long 29–38 cm, 5/Bag)
    NIBP Cuff (Large Adult 32–42 cm, 5/Bag)
    NIBP Cuff (Large Adult Long 35–44 cm, 5/Bag)
    NIBP Cuff (Thigh 42–50 cm)
    NIBP Tube (150 cm)
    Power Adapter
    Rechargeable Battery
    Charger (Panasonic)

    Product Overview

    Core specifications at a glance

    SKU MDT02-D00004
    Gross Weight 0.72kg
    Package Size 17x12x13cm
    QTY/BOX 1pcs
