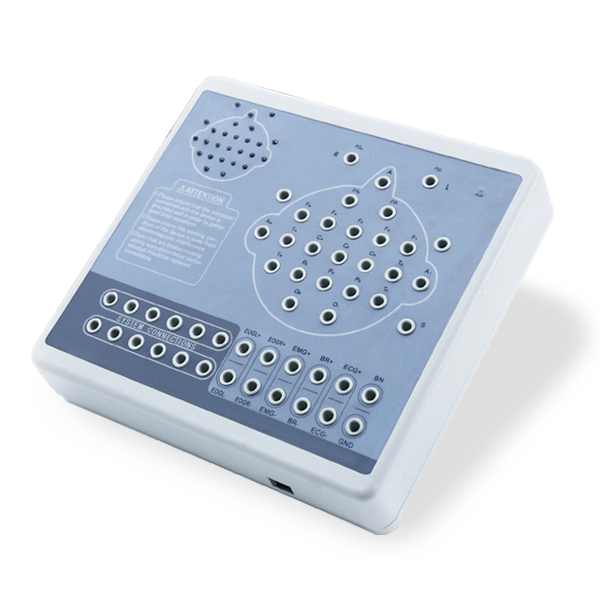

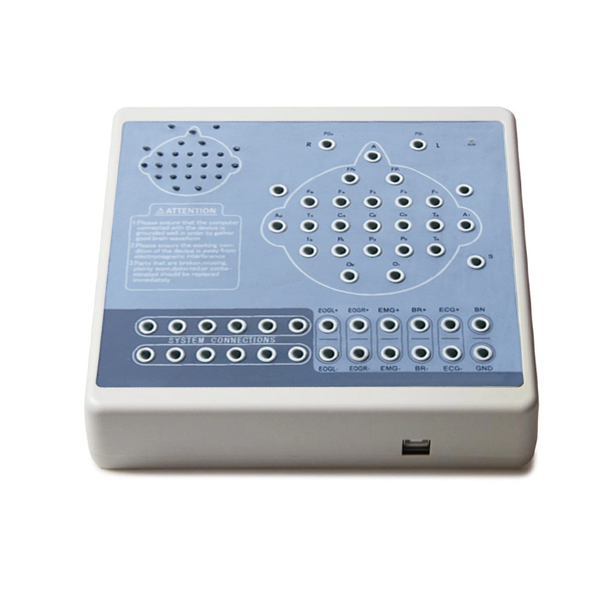

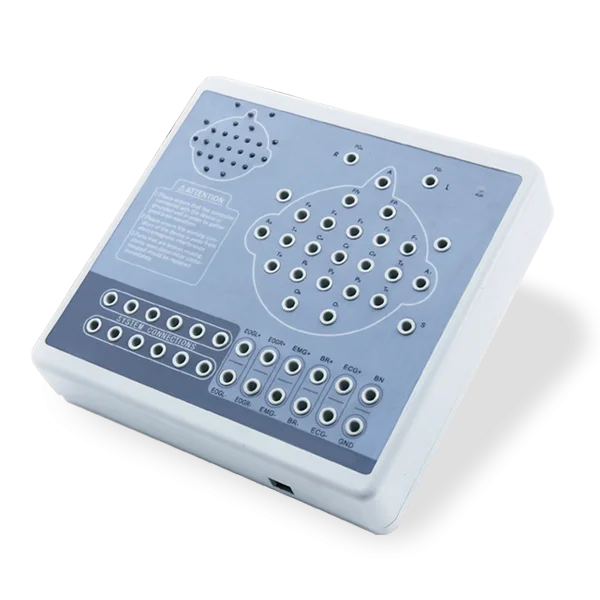

24-Channel EEG Brain Mapping System – Advanced Digital Electroencephalography Monitoring & Analysis System.
The 24-Channel EEG Brain Mapping System is a professional digital electroencephalography solution designed for neurological examinations and brain activity analysis. The system collects EEG signals through electrodes, performs digital amplification, A/D conversion, automatic analysis, and FFT processing to generate brain electrical activity maps (BEAM) with color-coded power distribution visualization.
Designed for hospitals, neurology departments, and diagnostic centers, it supports accurate evaluation of neurological disorders including epilepsy, intracranial inflammation, cerebrovascular diseases, and brain tumors. The system provides high-quality signal acquisition, low noise performance, advanced software analysis, and optional multi-parameter monitoring modules.
All Meditech professional healthcare customers can submit equipment service tickets through our Customer Service Portal.
To receive an additional 2 months of extended warranty, please register your products here.For all support resources and contact information, visit our Support hub.
Coming soon.
Discover the advanced capabilities that set our products apart
Supports optional 5-channel module:
Detailed technical specifications and performance parameters
| Parameter | Specification |
|---|
| Device Type | Digital EEG Brain Mapping System |
| EEG Channels | 24 Channels |
| Application | EEG monitoring, brain electrical activity mapping |
| Signal Processing | Integrated amplification, A/D conversion, FFT analysis |
| Display Method | Brain electrical activity mapping (BEAM) with color power distribution |
| Scan Speed | 60 mm/s ±5% |
| Noise Level | ≤3 μV |
| CMRR | ≥90 dB |
| Frequency Response | 0.5 Hz–60 Hz (100 μV sinusoidal AC signal without distortion) |
| Polarization Voltage Resistance | ±300 mV DC, deviation ≤±5 |
| Power Supply | DC 5V |
| Safety Classification | Class II, Type BF applied part |
| Normal Working Temperature | +5°C to +40°C |
| Working Humidity | ≤85% RH |
| Atmospheric Pressure | 700–1060 hPa |
| Transport Temperature | -20°C to +55°C |
| Transport Humidity | ≤90% RH |
| Transport Atmospheric Pressure | 700–1060 hPa |
| System Components | Recorder, USB cable, lead cable, EEG electrodes, electrode cap, software CD |
| Data Output | Screen display and printer output |
| Software Function | EEG analysis, FFT conversion, brain mapping |
Compatible accessories to extend functionality
| Accessory | Quantity |
|---|---|
| EEG Lead Cable | 1 Pc |
| EEG Electrodes | 1 Set |
| Data Cable | 1 Pc |
| Electrode Headgear / Cap | 1 Pc |
| Strobe Light | 1 Pc |
| Strobe Light Power Supply | 1 Pc |
| PC Software CD | 1 Pc |
| User Manual | 1 Pc |
| Earth Wire | 1 Pc |

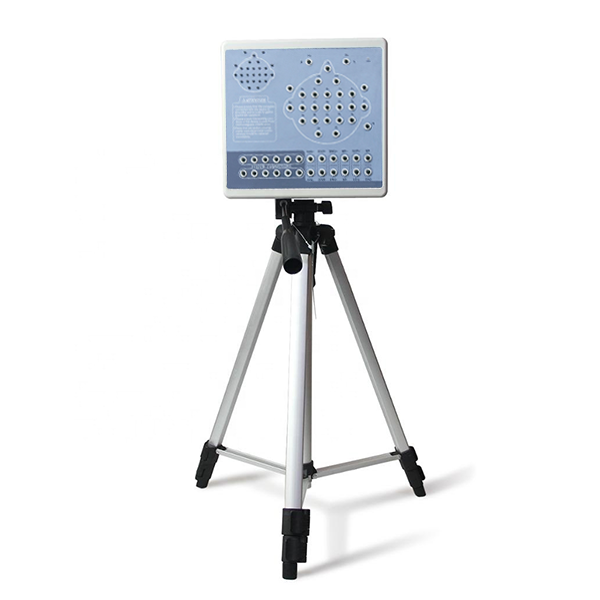

| EEG Bracket | 1 Pc |
| Aluminum Block | 1 Pc |
