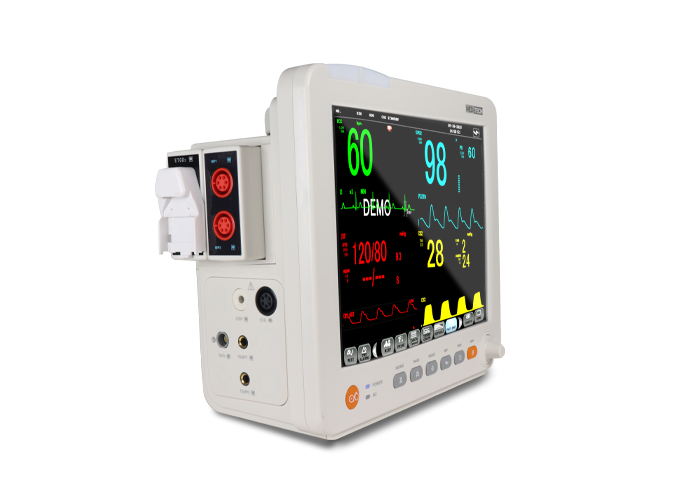

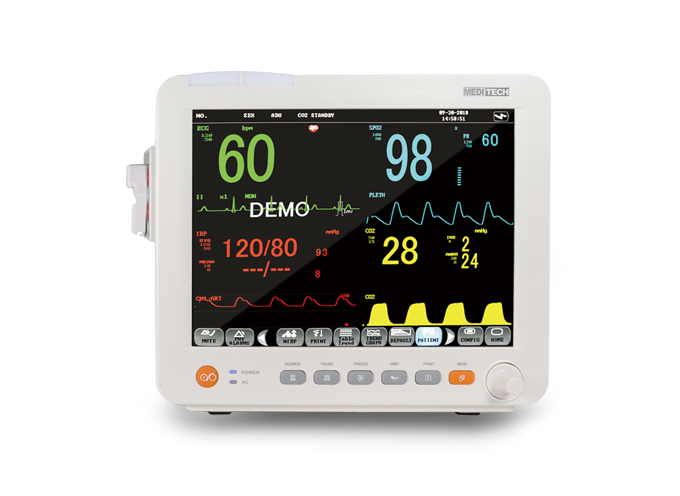

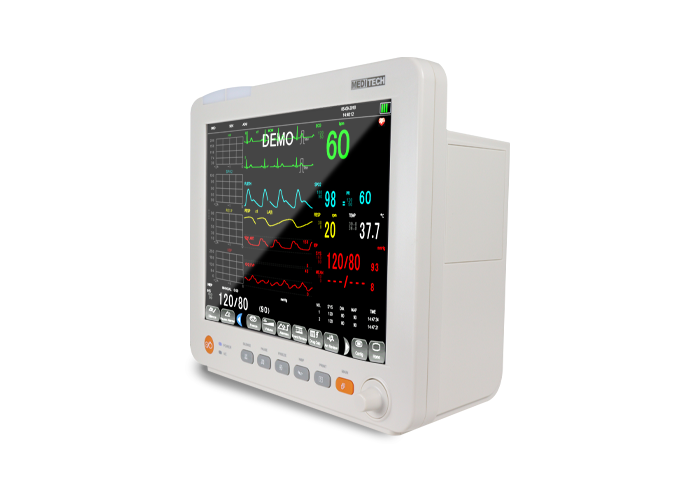

    MD-12M

    12.1-Inch Touch Screen Modular Patient Monitor with ECG, SpO₂, NIBP & EtCO₂ Expansion.

    The 12.1-inch Modular Patient Monitor is an advanced clinical monitoring solution designed for hospitals, clinics, and critical care environments. Featuring a large touch-screen interface and flexible modular architecture, it provides comprehensive patient monitoring with expandable parameters to meet different clinical requirements.

    • 12.1-Inch Touch Screen Display
      High-resolution touch interface for intuitive operation and clear visualization of patient data.
    • Comprehensive Standard Monitoring
      Includes:
      • ECG
      • SpO₂
      • NIBP
      • RESP
      • Dual Temperature (TEMP)
      • Pulse Rate (PR)
    • Expandable Modular Design
      Supports optional advanced modules including:
      • Dual Invasive Blood Pressure (IBP)
      • End-Tidal CO₂ (EtCO₂)
    • Flexible Clinical Applications
      Suitable for patient monitoring in wards, emergency departments, operating rooms, and intensive care environments.
    • Advanced Monitoring Capability
      Provides reliable real-time physiological parameter monitoring with a scalable configuration for different patient care needs.
    Email this page
    CE CE Marked
    ABS Made by ABS
    LATEX Not made with natural rubber latex

    Product Features

    Discover the advanced capabilities that set our products apart

    12.1-Inch Modular Multiparameter Patient Monitor Overview: A high-resolution 12.1-inch TFT touch screen modular patient monitor, designed for versatile clinical use, suitable for adult, pediatric, and neonatal patients. Standard Monitoring Parameters:
    • ECG
    • Respiration (RESP)
    • Pulse Rate (PR)
    • Non-invasive Blood Pressure (NIBP)
    • SpO₂
    • Temperature (TEMP)
    Optional Monitoring Parameters:
    • 2 Invasive Blood Pressures (IBP)
    • End-Tidal CO₂ (ETCO₂)
    Features:
    • Maximum 8-channel synchronous waveform display.
    • Built-in rechargeable lithium battery for up to 2 hours of continuous operation.
    • Three working modes: Monitoring, Operation, and Diagnosis.
    • Data and waveform colors adjustable for clarity.
    • Arrhythmia analysis and ST-segment analysis included.
    • Display up to 7 ECG waveforms on a single screen with cascade ECG view.
    • VGA output for external display.
    • System software upgradable via USB.


    Product Specifications

    Detailed technical specifications and performance parameters

    ECG Monitoring

    Parameter Specification
    Lead Mode 5 Leads (R, L, F, N, C / RA, LA, LL, RL, V)
    Lead Selection I, II, III, aVR, aVL, aVF, V
    Waveform Display 2 Channels
    Derivative Mode 3 Derivatives (R, L, F / RA, LA, LL)
    Line Selection I, II, III
    Gain ×2.5, ×5, ×10, ×20 mm/mV, Auto
    Heart Rate Range Adult: 15–300 bpm / Pediatric-Neonatal: 15–350 bpm
    HR Accuracy ±1% or ±1 bpm
    Resolution 1 bpm
    Sensitivity >200 μV
    Differential Input Impedance >5 MΩ
    CMRR Monitoring: >105 dB / Operation: >105 dB / Diagnostics: >85 dB
    Electrode Offset Potential ±300 mV
    Leakage Current <10 μA
    Baseline Recovery <3 s after defibrillation
    ECG Signal Range ±8 mV (Vp-p)
    Bandwidth Surgery: 1–15 Hz / Monitoring: 0.5–35 Hz / Diagnostic: 0.05–100 Hz
    Calibration Signal 1 mV ±5%
    ST Monitoring Range -2.0 to +2.0 mV
    Arrhythmia Detection ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT >2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC

    RESP (Respiration Monitoring)

    Parameter Specification
    Measurement Method Impedance between RF (RA-LL)
    Differential Input Impedance >2.5 MΩ
    Measurement Impedance Range 0.3–5.0 Ω
    Baseline Impedance Range 0–2.5 kΩ
    Bandwidth 0.3–2.5 Hz
    Respiratory Rate Range Adult: 0–120 rpm / Pediatric-Neonatal: 0–150 rpm
    Resolution 1 rpm
    Accuracy ±2 rpm
    Apnea Alarm 10–40 s

    NIBP Monitoring

    Parameter Specification
    Measurement Method Oscillometric
    Modes Manual / Automatic / STAT
    Auto Measurement Interval 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240, 480 min
    STAT Mode Duration 5 min
    Pulse Rate Range 40–240 bpm
    Alarm Type SYS, DIA, MEAN

    Measurement Range

    Patient Type SYS DIA MEAN
    Adult 40–270 mmHg 10–215 mmHg 20–235 mmHg
    Pediatric 40–200 mmHg 10–150 mmHg 20–165 mmHg
    Neonatal 40–135 mmHg 10–100 mmHg 20–110 mmHg
    Parameter Specification
    Resolution 1 mmHg
    Accuracy Maximum mean deviation ±5 mmHg; Standard deviation ±8 mmHg
    Overpressure Protection Adult: 297±3 mmHg / Pediatric: 240±3 mmHg / Neonatal: 147±3 mmHg

    SpO₂ Monitoring

    Parameter Specification
    Measuring Range 0–100%
    Alarm Range 0–100%
    Resolution 1%
    Accuracy 70–100%: ±2% / 0–69%: Not specified
    Update Interval Approx. 1 s
    Alarm Delay 10 s
    Pulse Rate Range 0–254 bpm
    Pulse Rate Resolution 1 bpm
    Pulse Rate Accuracy ±2 bpm

    Temperature Monitoring

    Parameter Specification
    Channels 1 Channel
    Measuring & Alarm Range 0–50°C
    Resolution 0.1°C
    Accuracy ±0.1°C
    Update Interval Approx. 1 s
    Average Time Constant <10 s

    IBP (Invasive Blood Pressure) Module

    Parameter Specification
    Supported Channels ART, PA, CVP, RAP, LAP, ICP, P1, P2

    Measurement Range

    Channel Range
    ART 0–300 mmHg
    PA -6–120 mmHg
    CVP / RAP / LAP / ICP -10–40 mmHg
    P1 / P2 -10–300 mmHg
    Parameter Specification
    Pressure Sensor Sensitivity 5 μV/V/mmHg
    Impedance 300–3000 Ω
    Resolution 1 mmHg
    Accuracy ±2% or ±1 mmHg

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories Included
    Item Quantity
    ECG Cable (5 Leads) 1 pcs
    SpO₂ Cable (Adult) 1 pcs
    TEMP Probe (Adult) 1 pcs
    NIBP Cuff (Adult) 1 pcs
    NIBP Tube (150 cm) 1 pcs
    Ground Cable 1 pcs
    Power Cable 1 pcs
    Cleaning Cloth 1 pcs

    Optional Accessories

    ECG Accessories

    • ECG Cable (3 Leads)
    • ECG Alligator Clips (Metal)

    SpO₂ Accessories

    • SpO₂ Cable (Adult Hard Shell Sensor)
    • SpO₂ Cable (Adult Soft Shell Sensor)
    • SpO₂ Cable (Neonatal Soft Sensor)
    • SpO₂ Cable (Pediatric Hard Shell Sensor)
    • SpO₂ Cable (Pediatric Soft Shell Sensor)
    • SpO₂ Cable (Child Finger Clip)
    • SpO₂ Cable (Multi-site Y Type)
    • SpO₂ External Cable

    NIBP Accessories

    • NIBP Cuff (Infant 8–14 cm, 5/Bag)
    • NIBP Cuff (Child 13–20 cm, 5/Bag)
    • NIBP Cuff (Small Adult 18–26 cm, 5/Bag)
    • NIBP Cuff (Adult 26–35 cm, 5/Bag)
    • NIBP Cuff (Adult Long 29–38 cm, 5/Bag)
    • NIBP Cuff (Large Adult 32–42 cm, 5/Bag)
    • NIBP Cuff (Large Adult Long 35–44 cm, 5/Bag)
    • NIBP Cuff (Thigh 42–50 cm)
    • NIBP Tube (150 cm)

    Printing & Mounting Accessories

    • Thermal Paper Roll
    • Thermal Printer
    • Patient Monitor Wall Mounts (3 Models)
    • Patient Monitor Trolley (5 Models)

    EtCO₂ Accessories

    • EtCO₂ Module
    • CO₂ Sample Line
    • Nasal Tube
    • Water Trap Column
    • Airway Adapter

    IBP Accessories

    • IBP Adapter (2-IBP)
    • IBP Reusable Interface Cable
    • IBP Disposable Transducers

    Product Overview

    Core specifications at a glance

    SKU MDT10-D00009
    Gross Weight 4.3kg
    Package Size 38×29×26cm
    QTY/BOX 1pcs
