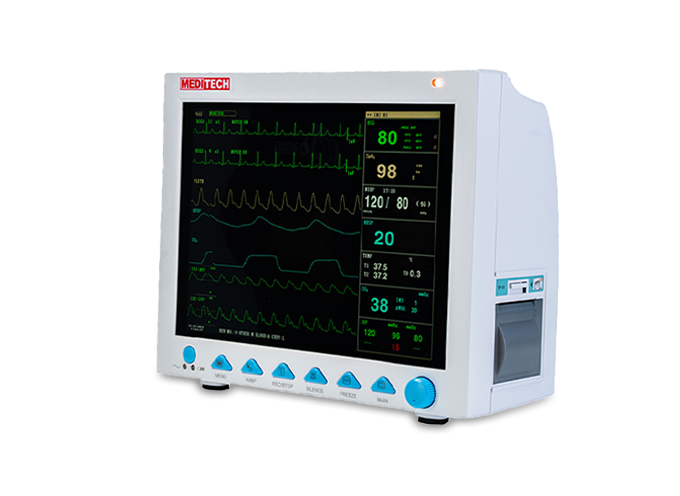

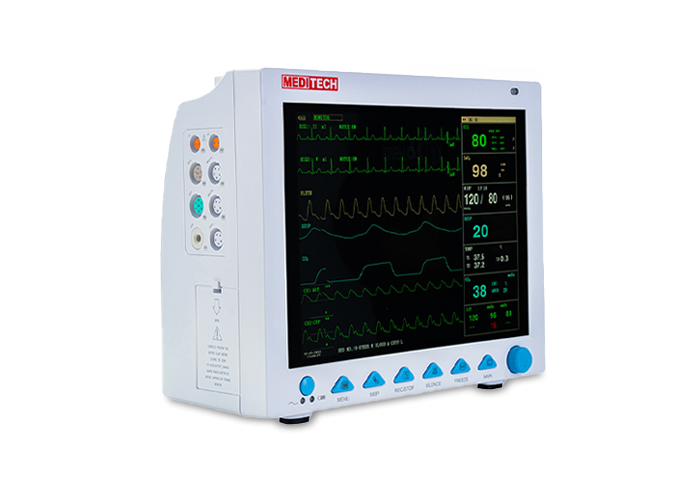

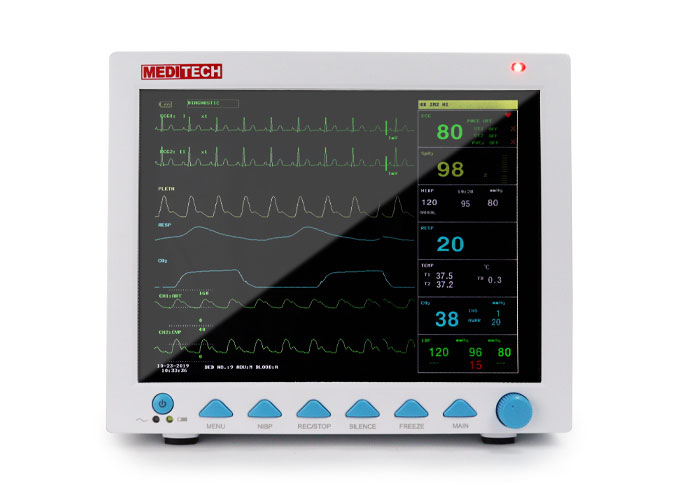

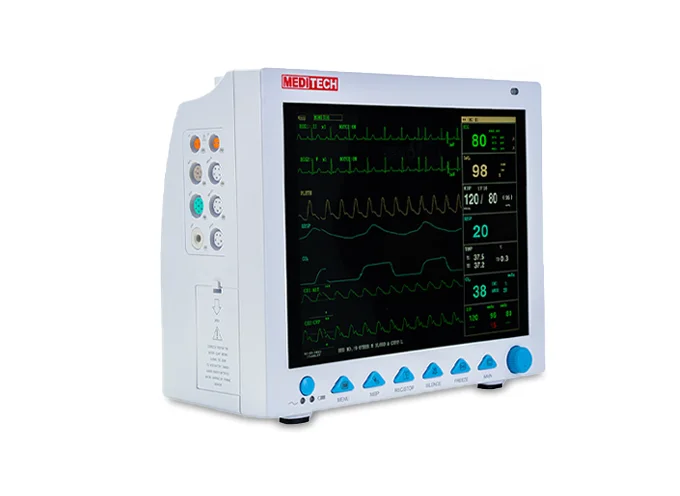

    MD9000S

    12.1-Inch Advanced Patient Monitor with ECG, SpO₂, NIBP, RESP & EtCO₂ Options

    12.1-Inch Multi-Parameter Patient Monitor with Expandable Modules

    The 12.1-Inch Multi-Parameter Patient Monitor is an advanced clinical monitoring solution designed for hospitals, emergency care, operating rooms, and intensive care environments. It provides continuous monitoring of essential vital signs with a large, clear display and expandable options for advanced patient assessment.

    Standard Monitoring Parameters:

    • ECG
    • SpO₂
    • NIBP
    • Respiration (RESP)
    • Dual Temperature (2 × TEMP)
    • Pulse Rate (PR)

    Optional Functions:

    • Dual Invasive Blood Pressure (2 × IBP)
    • EtCO₂ Monitoring
    • Thermal Printer for waveform and report printing

    Email this page
    CE CE Marked
    ABS Made by ABS
    LATEX Not made with natural rubber latex

    Product Features

    Discover the advanced capabilities that set our products apart

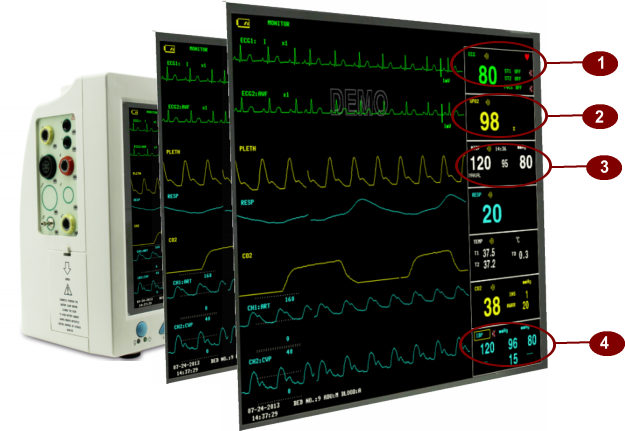

    • Waveform Display: 7-channel ECG display with a maximum of 8-channel synchronous waveforms.
    • Trend & Alarm Data: 72-hour trend data in graphical and tabular form; 480 alarm events retrievable.
    • Standard Monitoring Parameters: 3/5-lead ECG, NIBP, SpO₂, Respiration (RESP), 2-Temp, Pulse Rate (PR), built-in printer.
    • NIBP Modes: Manual, AUTO, and STAT; memory for 4,800 NIBP group data.
    • Color Customization: Adjustable color for data and waveform display.
    • Advanced Analysis: Arrhythmia analysis, S-T segment analysis, Heart Rate Variability (HRV) analysis.
    • Drug & Titration Support: Drug concentration calculation and titration table functions.
    • Interfaces & Connectivity: Standard interfaces, oxygen diagram, trend diagram, large font display; connect to central monitoring system via 3G, Wi-Fi, or wired mode.
    • Power Supply: AC/DC operation with removable rechargeable lithium battery for continuous monitoring; 150 minutes of operation.
    • Safety Features: Anti-high frequency surgical device protection; defibrillation safe (special cables required).
    • Multilingual support for global clinical environments.
    Optional Features:
    • Invasive Blood Pressure (IBP)
    • End-Tidal CO₂ (EtCO₂)
    • Thermal printer
    Benefits:
    • Comprehensive patient monitoring for multiple care settings.
    • Advanced analysis tools aid in clinical decision-making.
    • Portable and compact design for bedside flexibility.

    Product Specifications

    Detailed technical specifications and performance parameters

    ECG Monitoring

    Parameter Specification
    Lead Mode 5 Leads (R, L, F, N, C / RA, LA, LL, RL, V)
    Lead Selection I, II, III, aVR, aVL, aVF, V
    Waveform Display 2 Channels
    Derivative Mode 3 Derivatives (R, L, F / RA, LA, LL)
    Line Selection I, II, III
    Gain ×2.5, ×5, ×10, ×20 mm/mV
    Heart Rate Range Adult: 30–300 bpm / Neo-Ped: 30–350 bpm
    HR Accuracy ±1% or ±1 bpm
    Resolution 1 bpm
    Sensitivity >200 μV p-p
    Differential Input Impedance >5 MΩ
    CMRR Monitoring >105 dB / Operation >105 dB / Diagnostic >85 dB
    Electrode Offset Potential ±300 mV
    Leakage Current <10 μA
    Baseline Recovery <10 s after defibrillation
    ECG Signal Range ±8 mV (Vp-p)
    Bandwidth Surgery: 1–15 Hz / Monitoring: 0.5–35 Hz / Diagnostic: 0.05–100 Hz
    Calibration Signal 1 mV (Vp-p), ±5% accuracy
    ST Monitoring Range -2.0 to +2.0 mV
    Arrhythmia Detection ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT >2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
    T-Wave Suppression 1.2 mV
    HR Averaging Average of last 6 R-R intervals
    Display Update Rate 1 s
    Alarm Function Available
    Verification Function Available

    Heart Rate Response Performance

    Condition Response
    Bigeminy Ventricular 80 bpm
    Bigeminy Ventricular Alternate Slow 57 or 63 bpm
    Bigeminy Ventricular Alternate Fast 122 or 123 bpm
    Systole Bidirectional 95 bpm
    HR Change Response (80→120 bpm) Average 3.7 s (Range 3.2–4.1 s)
    HR Change Response (80→40 bpm) Average 4.7 s

    NIBP Monitoring

    Parameter Specification
    Measurement Method Oscillometric
    Modes Manual / Auto / STAT
    Auto Measurement Interval 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 240, 480, 960 min
    STAT Mode Duration 5 min
    Pulse Rate Range 40–240 bpm
    Alarm Type SYS, DIA, MEAN

    Measurement Range

    Patient Mode SYS DIA MEAN
    Adult 40–270 mmHg 10–215 mmHg 20–235 mmHg
    Pediatric 40–200 mmHg 10–150 mmHg 20–165 mmHg
    Neonatal 40–135 mmHg 10–100 mmHg 20–110 mmHg
    Parameter Specification
    Resolution 1 mmHg
    Accuracy Maximum mean error ±5 mmHg / Maximum standard deviation ±8 mmHg
    Overpressure Protection Adult: 297±3 mmHg / Pediatric: 240±3 mmHg / Neonatal: 147±3 mmHg

    Temperature Monitoring

    Parameter Specification
    Channels 2 Channels
    Measuring & Alarm Range 0–50°C
    Resolution 0.1°C
    Accuracy ±0.1°C
    Update Interval Approx. 1 s
    Average Time Constant <10 s

    IBP Monitoring (Optional)

    Parameter Specification
    Channels 2 Channels
    Supported Parameters ART, PA, CVP, RAP, LAP, ICP, P1, P2

    Measurement Range

    Parameter Range
    ART 0–300 mmHg
    PA -6–120 mmHg
    CVP / RAP / LAP / ICP -10–40 mmHg
    P1 / P2 -10–300 mmHg
    Parameter Specification
    Sensor Sensitivity 5 μV/V/mmHg
    Impedance 300–3000 Ω
    Resolution 1 mmHg
    Accuracy ±2% or ±1 mmHg
    Update Interval Approx. 1 s

    Display & User Interface

    Parameter Specification
    Display Type 12.1" Color TFT Display (Sharp Japan)
    Waveforms Display Up to 7 Waveforms
    Alarm Indicator 1 LED (Yellow/Red)
    Power Indicator Green LED
    Battery Charge Indicator Yellow LED
    Sound Modes 3 Alarm Sound Modes

    Signal Interface

    Parameter Specification
    ECG Output BNC
    Output Amplitude 1 V/mV
    Accuracy <5%
    Impedance 50 Ω
    Signal Delay <20 ms

    Related Accessories

    Compatible accessories to extend functionality

    Standard Accessories

    Item Quantity
    ECG Cable (5 Leads) 1 pcs
    SpO₂ Cable (Adult) 1 pcs
    TEMP Probe (Adult) 1 pcs
    NIBP Cuff (Adult) 1 pcs
    NIBP Tube (150 cm) 1 pcs
    Ground Cable 1 pcs
    Power Cable 1 pcs
    Cleaning Cloth 1 pcs

    Optional Accessories

    ECG Accessories

    • ECG Cable (3 Leads)
    • ECG Alligator Clips (Metal)

    SpO₂ Accessories

    • SpO₂ Cable (Adult Hard Shell Sensor)
    • SpO₂ Cable (Adult Soft Shell Sensor)
    • SpO₂ Cable (Neonatal Soft Sensor)
    • SpO₂ Cable (Pediatric Hard Shell Sensor)
    • SpO₂ Cable (Pediatric Soft Shell Sensor)
    • SpO₂ Cable (Child Finger Clip)
    • SpO₂ Cable (Multi-site Y Type)
    • SpO₂ External Cable

    NIBP Accessories

    • NIBP Cuff (Infant 8–14 cm, 5/Bag)
    • NIBP Cuff (Child 13–20 cm, 5/Bag)
    • NIBP Cuff (Small Adult 18–26 cm, 5/Bag)
    • NIBP Cuff (Adult 26–35 cm, 5/Bag)
    • NIBP Cuff (Adult Long 29–38 cm, 5/Bag)
    • NIBP Cuff (Large Adult 32–42 cm, 5/Bag)
    • NIBP Cuff (Large Adult Long 35–44 cm, 5/Bag)
    • NIBP Cuff (Thigh 42–50 cm)
    • NIBP Tube (150 cm)

    Printing & Mounting Accessories

    • Thermal Paper Roll
    • Thermal Printer
    • Patient Monitor Wall Mounts (3 Models)
    • Patient Monitor Trolley (5 Models)

    EtCO₂ Accessories

    • EtCO₂ Module
    • CO₂ Sample Line
    • Nasal Tube
    • Water Trap Column
    • Airway Adapter

    IBP Accessories

    • IBP Adapter (2-IBP)
    • IBP Reusable Interface Cable
    • IBP Disposable Transducers

    Product Overview

    Core specifications at a glance

    SKU MDT10-D00005
    Gross Weight 5kg
    Package Size 39×39×39cm
    QTY/BOX 1pcs
