MD9015T
MD9015T

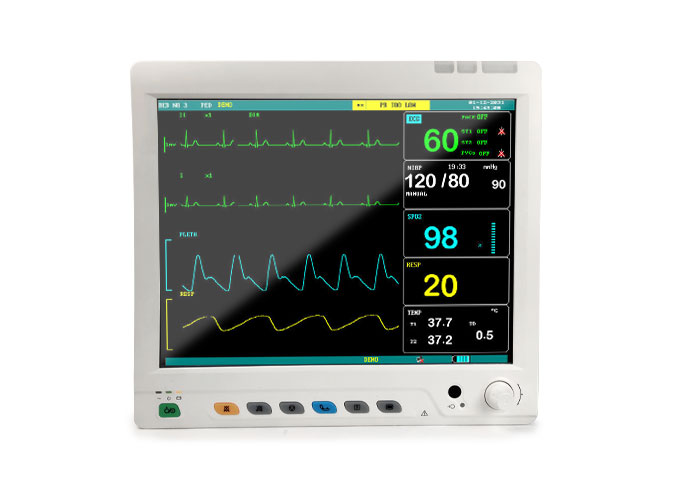

​15-inch touchscreen patient monitor 192-hour trend graph, 1000 blood pressure groups, ST segment measurements, arrhythmia analysis and other features,
Supports up to 32 TCP/IP network connections, consisting of a central information system.

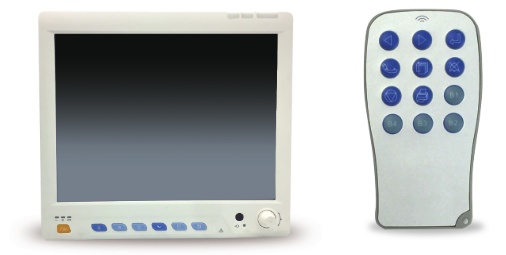

Comes with remote control


Masimo spo2 module (Option)
MD9015T
​15-inch touchscreen patient monitor 192-hour trend graph, 1000 blood pressure groups, ST segment measurements, arrhythmia analysis and other features,
Supports up to 32 TCP/IP network connections, consisting of a central information system.
Comes with remote control


Masimo spo2 module (Option)
Read More
Color display with a resolution of 15 inches
Touchscreen operation more efficient and convenient
Operation via remote control
Fulfill the alarm system eye-catching sub column independently with the YY0709
Waming lights can be three sound and light alarm immediately
Pacing analysis can be used simultaneously with pacemakers defibrillators 192 hours trend graph waveform freeze 1000 group of blood pressure list
ST segment measurements arrhythmia analysis
Various types of multi-line ECG capital letter respiration oxygen content short trend display interface
Multi-level alarm function to adjust the pulse volume; parameter display colors can be customized according to user preference
User information management functions for entering patient information and identity management
External replaceable lithium battery for 120 minutes of continuous operation
External recorder can print out the recorded waveform data and other information in real time
Drug concentration setting and recording for titration calculations to support event functions
Up to 32 TCP/IP network connections, consisting of a central information system
Wireless network

Options:
Blood pressure, EtCO2 and thermal printer

MD9015T Support:
DC power supply and adaptation to a wide range of environmental conditions
External recorder can print the recorded waveform data and other information in real time
External EtCO2 interface can be connected to the CO2 module to meet clinical requirements
Adjustment and recording of drug concentration in titration calculations to support event functions
Up to 32 TCP/IP network connections to form a centralised information system
Wireless networking

Options
Invasive blood pressure (IBP)
Carbon dioxide (CO2) module
Masimo SpO2 Module
Thermal printer
Built-in Wifi

Electrocardiogram (ECG)
Input mode Five-lead ECG input / three-lead ECG input
Lead selection I, II, III, aVR, aVL, aVF, V-
Gain selection AUTO,0.25X,0.5X,1X,2X,4X
Operating mode Diagnostic mode, monitoring mode, operation mode
Calibration signal 1mV ±5%
Protection The isolation voltage 4000V, 50/60Hz. Anti-high-frequency interference of electric knife. Anti-defibrillation protection.
Pacemaker at the same time use Support
Electrode off instructions Each electrode (RL excluded)
Scanning speed 12.5mm/s, 25 mm/s, 50 mm/s
Common mode rejection ratio ≥90dB
Input impedance ≥5.0MΩ

Heartrate (HR)
Measuring range Adult 30 ~ 300bpm, newborns 30 to 350 bpm
Resolution 1 bpm
Accuracy < ±5bpm
Heart rate sensitivity ≥0.20mVp-p
Alarm range 15 to 350 bpm, upper and lower limits
Alarm indication Audible and visual alarm, display the data and parameters flashing display alarm
message text prompts, there are three levels of alarm

Pulse Oximetry
SPO2 Range:                          1% to 99%
Resolution:                              1%
Accuracy:                                70% to 99% range: ±2%;
1% to 69% range:                    ±5%;
Method:                                  Dual wavelength LED

ST-segment
ST-segment measurement range -2.0～+2.0mV
ST-segment measurement accuracy Within the range of -0.8 ~ +0.8 mV: ± 0.02mV or reading± 10%,
Whichever is greater; Other range: undefined
Resolution 0.01mV
ST-segment update cycle 10s
ST segment alarm range -2.0 ~ +2.0 MV, the upper and lower limits continuously adjustable

Arrhythmia analysis
Arrhythmia types 13 kinds of (scalable)

Respiration Rate
Rate:                                  2 to 120 bpm (CO2)
Resolution:                        1 breath/min

NIBP (Non-invasive Blood Pressure)
Technique:                        Oscillometric during inflation
Range:                               Adult/Pediatric: 40 to 240 mmHg
Neonate:                           10 to 150 mmHg
Measurement Cycle:         < 40 sec. typical
Automatic Measurement
Cycles (Selectable):          2, 3, 5, 10, 15, 30 min; 1, 2, 4 hr
STAT Mode:                      5 minutes of continuous readings
Max. Allowable Cuff
Pressure: Adult:                300mmHg
Pediatric:                          240 mmHg;
Neonate:                          150 mmHg
Resolution:                       1 mmHg
Transducer Accuracy:       ±2 mmHg or ±2% of reading,
Heart (Pulse) Rate
Range:                              30 to 250 bpm
Accuracy:                        ±2 bpm or ±3%, whichever is greater


EtCO2 technological index

Interface form External interface
Range of
measurement		 0~10 kPa or (0~75) mmHg
precision（error） (0kPa~5.4kPa) the error is ±0.3kPa、
(5.5kPa~10.0kPa)the error is ±0.7kPa
Alarm upper limit 2.1~13.2 kPa
Alarm lower limit 0~6.5 kPa
time 12s
EtCO2 exist
Unit kPa / mmHg / %
Compatibility
external main stream and side stream are compatible

IBP technological index

Measured channel Single way and double way are optional
Range of
measurement		 SYS： 6.7kPa～32.0kPa(50mmHg～240mmHg)
MEAN： 3.4kPa～26.6kPa(26mmHg～200mmHg)
DIA： 2.9kPa～24.0kPa(22mmHg～180mmHg)
Mean error ≤±0.4kPa (±3mmHg)
Range of alarm SYS：  upper limit   0.3kPa~53.3kPa(2mmHg~400mmHg)
Lower limit   0kPa~53.1kPa(0mmHg~398mmHg)
MEAN：  upper limit    0.3kPa~53.3kPa (2mmHg~400mmHg)
Lower limit   0kPa~53.1kPa (0mmHg~398mmHg)
DIA：    upper limit    0.3kPa~53.3kPa ( 2mmHg~400mmHg)
             Lower limit   0kPa~53.1kPa ( 0mmHg~398mmHg)
Measured unit mmHg/kPa
Specification of
sensor		 DPT-248（space）
Consumables mode SCW-UTAH-01






Standard:

ECG Cable (5 Leads) ...... 1Pcs
SpO2 Cable (Adult)  ........ 1Pcs
TEMP Probe (Adult)  ....... 1Pcs
NIBP Cuff (Adult)  ............ 1Pcs
NIBP Tube(150cm)  ......... 1Pcs
Wall mount with basket .... 1pcs
Remote control .................1pcs
Ground Cable   ................ 1Pcs
Power Cable  ................... 1Pcs
Cleaning Cloth  ................ 1Pcs

Options:

NIBP Cuff (infant 8 - 14 cm 5/Bag)
Paper Role
Thermal printer
Patient Monitor Wall mounts (3 Models)

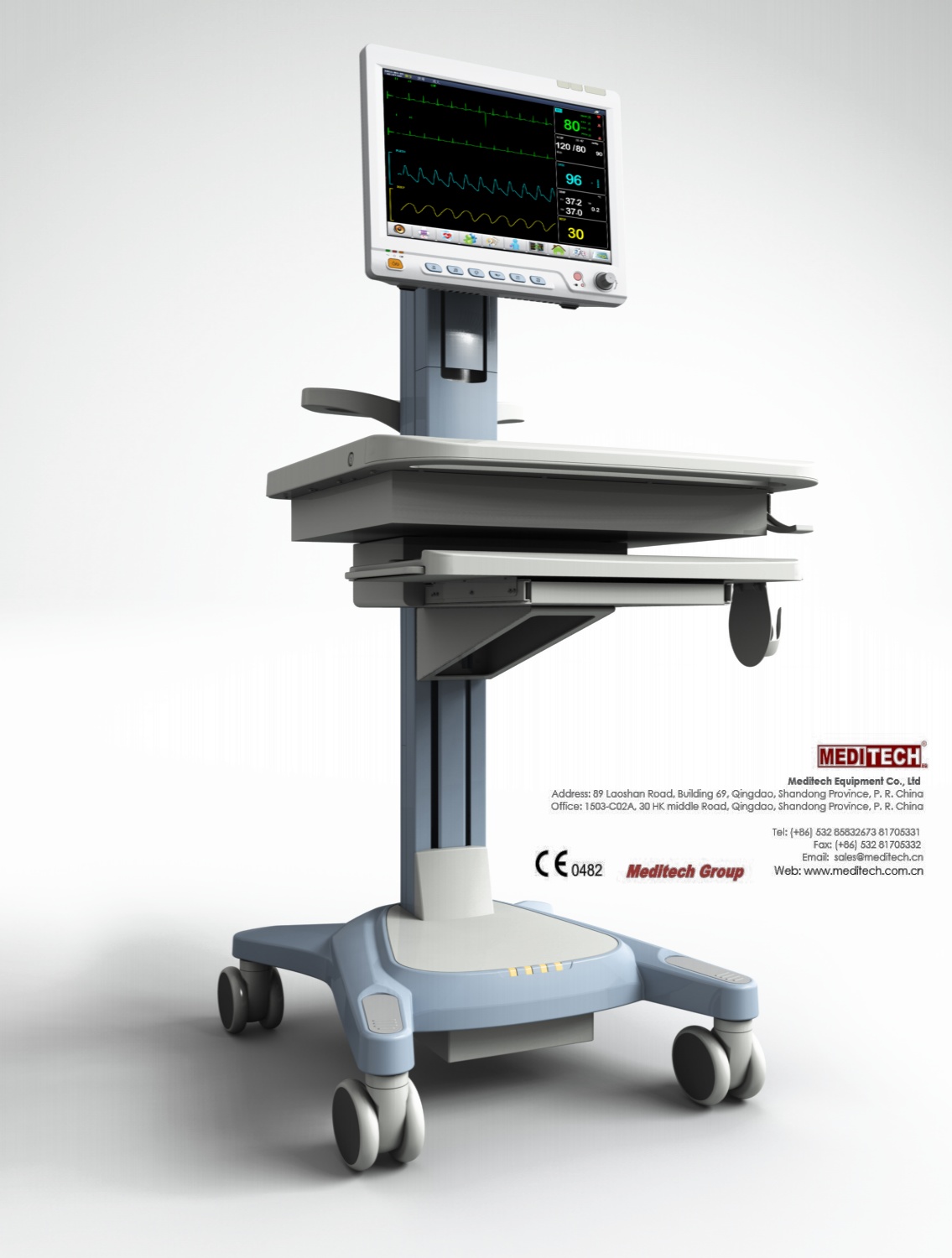

Patient Monitor Trolley (5 Models)
IBP Adapter (2-IBP)
IBP Reusable Interface Cable
IBP Disposable Transducers


Product Features

    Color display with a resolution of 15 inches
Touchscreen operation more efficient and convenient
Operation via remote control
Fulfill the alarm system eye-catching sub column independently with the YY0709
Waming lights can be three sound and light alarm immediately
Pacing analysis can be used simultaneously with pacemakers defibrillators 192 hours trend graph waveform freeze 1000 group of blood pressure list
ST segment measurements arrhythmia analysis
Various types of multi-line ECG capital letter respiration oxygen content short trend display interface
Multi-level alarm function to adjust the pulse volume; parameter display colors can be customized according to user preference
User information management functions for entering patient information and identity management
External replaceable lithium battery for 120 minutes of continuous operation
External recorder can print out the recorded waveform data and other information in real time
Drug concentration setting and recording for titration calculations to support event functions
Up to 32 TCP/IP network connections, consisting of a central information system
Wireless network

Options:
Blood pressure, EtCO2 and thermal printer

    MD9015T Support:
DC power supply and adaptation to a wide range of environmental conditions
External recorder can print the recorded waveform data and other information in real time
External EtCO2 interface can be connected to the CO2 module to meet clinical requirements
Adjustment and recording of drug concentration in titration calculations to support event functions
Up to 32 TCP/IP network connections to form a centralised information system
Wireless networking

Options
Invasive blood pressure (IBP)
Carbon dioxide (CO2) module
Masimo SpO2 Module
Thermal printer
Built-in Wifi

Product Specifications

    Electrocardiogram (ECG)
    Input mode Five-lead ECG input / three-lead ECG input
    Lead selection I, II, III, aVR, aVL, aVF, V-
    Gain selection AUTO,0.25X,0.5X,1X,2X,4X
    Operating mode Diagnostic mode, monitoring mode, operation mode
    Calibration signal 1mV ±5%
    Protection The isolation voltage 4000V, 50/60Hz. Anti-high-frequency interference of electric knife. Anti-defibrillation protection.
    Pacemaker at the same time use Support
    Electrode off instructions Each electrode (RL excluded)
    Scanning speed 12.5mm/s, 25 mm/s, 50 mm/s
    Common mode rejection ratio ≥90dB
    Input impedance ≥5.0MΩ

    Heartrate (HR)
    Measuring range Adult 30 ~ 300bpm, newborns 30 to 350 bpm
    Resolution 1 bpm
    Accuracy < ±5bpm
    Heart rate sensitivity ≥0.20mVp-p
    Alarm range 15 to 350 bpm, upper and lower limits
    Alarm indication Audible and visual alarm, display the data and parameters flashing display alarm
    message text prompts, there are three levels of alarm

    Pulse Oximetry
    SPO2 Range:                          1% to 99%
    Resolution:                              1%
    Accuracy:                                70% to 99% range: ±2%;
    1% to 69% range:                    ±5%;
    Method:                                  Dual wavelength LED

    ST-segment
    ST-segment measurement range -2.0～+2.0mV
    ST-segment measurement accuracy Within the range of -0.8 ~ +0.8 mV: ± 0.02mV or reading± 10%,
    Whichever is greater; Other range: undefined
    Resolution 0.01mV
    ST-segment update cycle 10s
    ST segment alarm range -2.0 ~ +2.0 MV, the upper and lower limits continuously adjustable

    Arrhythmia analysis
    Arrhythmia types 13 kinds of (scalable)

    Respiration Rate
    Rate:                                  2 to 120 bpm (CO2)
    Resolution:                        1 breath/min

    NIBP (Non-invasive Blood Pressure)
    Technique:                        Oscillometric during inflation
    Range:                               Adult/Pediatric: 40 to 240 mmHg
    Neonate:                           10 to 150 mmHg
    Measurement Cycle:         < 40 sec. typical
    Automatic Measurement
    Cycles (Selectable):          2, 3, 5, 10, 15, 30 min; 1, 2, 4 hr
    STAT Mode:                      5 minutes of continuous readings
    Max. Allowable Cuff
    Pressure: Adult:                300mmHg
    Pediatric:                          240 mmHg;
    Neonate:                          150 mmHg
    Resolution:                       1 mmHg
    Transducer Accuracy:       ±2 mmHg or ±2% of reading,
    Heart (Pulse) Rate
    Range:                              30 to 250 bpm
    Accuracy:                        ±2 bpm or ±3%, whichever is greater


    EtCO2 technological index

    Interface form External interface
    Range of
    measurement    		 0~10 kPa or (0~75) mmHg
    precision（error） (0kPa~5.4kPa) the error is ±0.3kPa、
    (5.5kPa~10.0kPa)the error is ±0.7kPa
    Alarm upper limit 2.1~13.2 kPa
    Alarm lower limit 0~6.5 kPa
    time 12s
    EtCO2 exist
    Unit kPa / mmHg / %
    Compatibility
    external main stream and side stream are compatible

    IBP technological index

    Measured channel Single way and double way are optional
    Range of
    measurement    		 SYS： 6.7kPa～32.0kPa(50mmHg～240mmHg)
    MEAN： 3.4kPa～26.6kPa(26mmHg～200mmHg)
    DIA： 2.9kPa～24.0kPa(22mmHg～180mmHg)
    Mean error ≤±0.4kPa (±3mmHg)
    Range of alarm SYS：  upper limit   0.3kPa~53.3kPa(2mmHg~400mmHg)
    Lower limit   0kPa~53.1kPa(0mmHg~398mmHg)
    MEAN：  upper limit    0.3kPa~53.3kPa (2mmHg~400mmHg)
    Lower limit   0kPa~53.1kPa (0mmHg~398mmHg)
    DIA：    upper limit    0.3kPa~53.3kPa ( 2mmHg~400mmHg)
                 Lower limit   0kPa~53.1kPa ( 0mmHg~398mmHg)
    Measured unit mmHg/kPa
    Specification of
    sensor    		 DPT-248（space）
    Consumables mode SCW-UTAH-01
