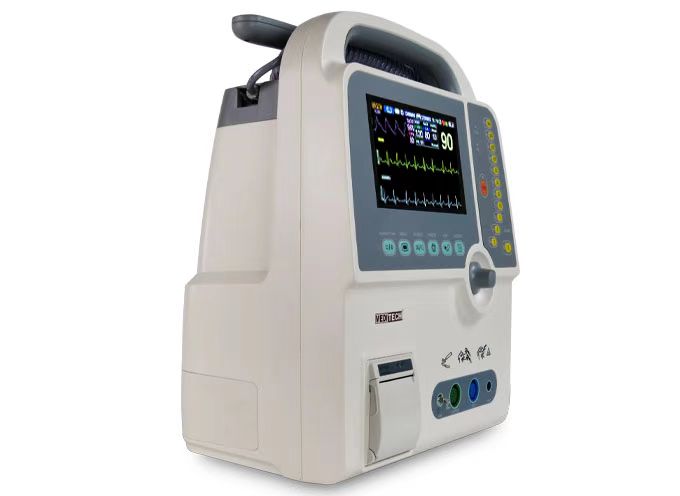

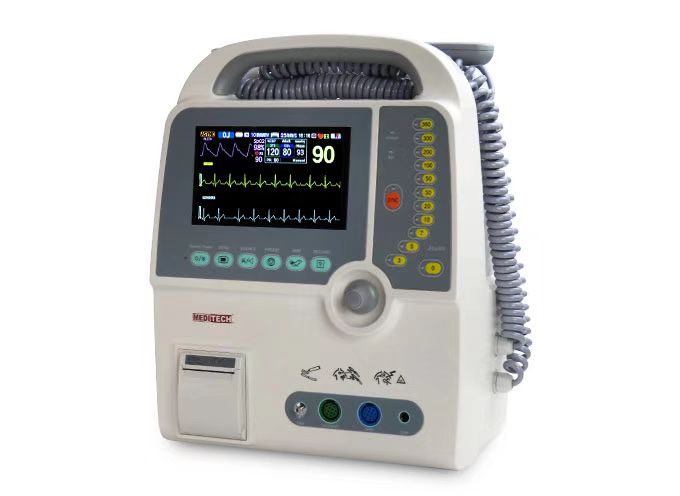

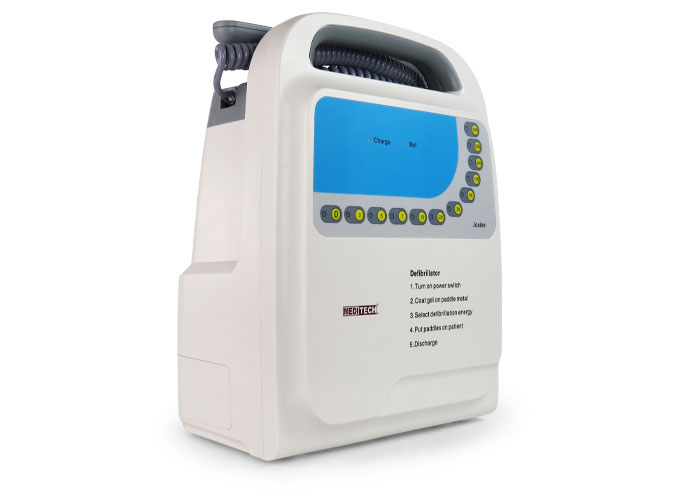

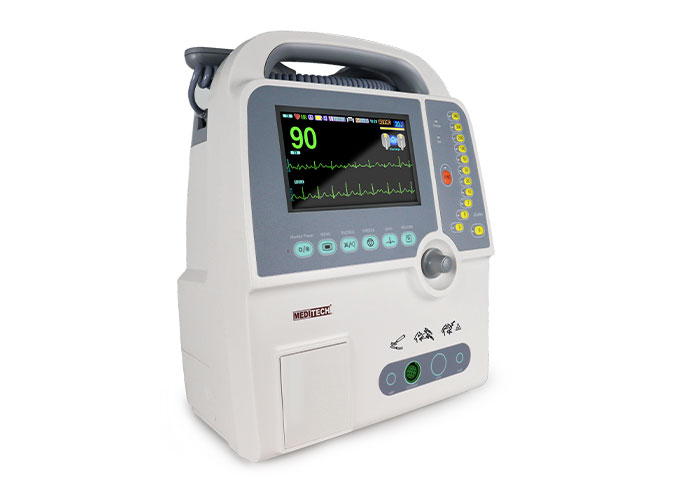

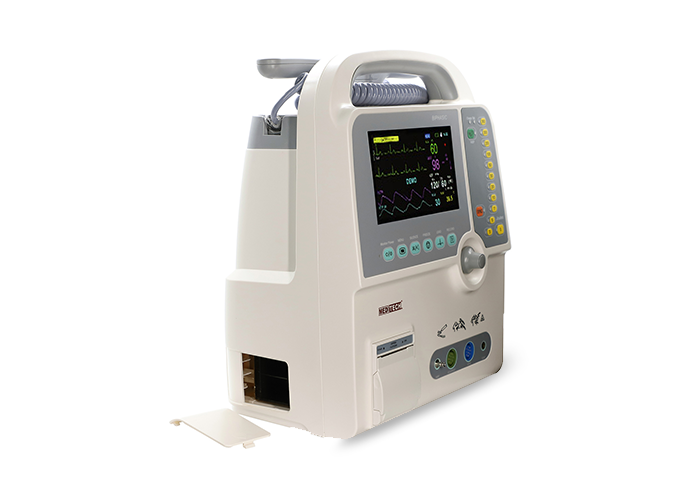

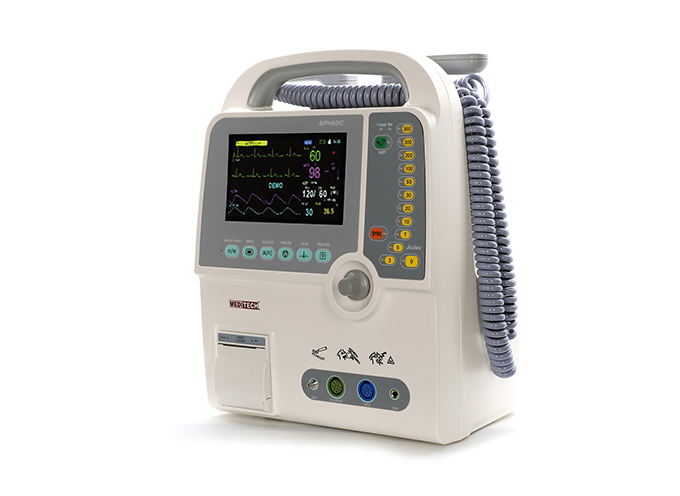

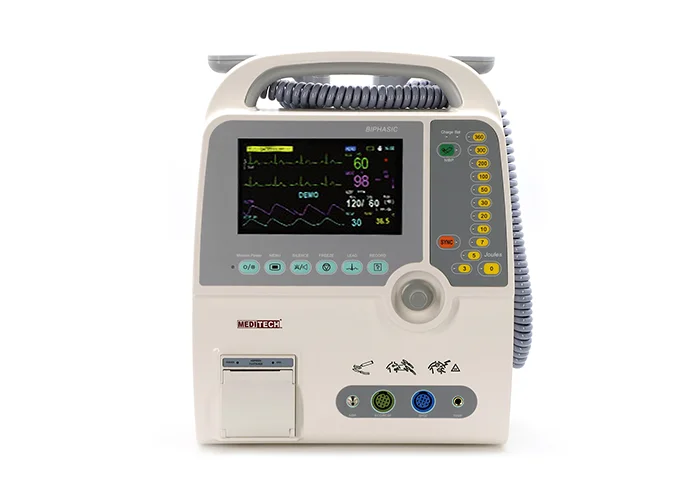

Defi® 9
Defi® 9 Plus is a compact durable light weighted defibrillator which integrated monitoring manual defibrillation.
It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics

Multi-parameters patient monitor  ECG.SpO2.NIBP.RESP.PR.TEMP
Defi® 9 Plus is a compact durable light weighted defibrillator which integrated monitoring manual defibrillation.
It is a professional biphasic defibrillator-monitor suitable for hospitals and clinics

Multi-parameters patient monitor  ECG.SpO2.NIBP.RESP.PR.TEMP
Read More
Defibrillator:
Large TFT screen 7 inch
Built in multi parameter patient monitor  ECG.SpO2.NIBP.RESP.PR.TEMP
Defibrillator type           Manual Synchronized A synchronized
Output waveform         Biphasic technology (optional)
Energy accuracy          ∠+1%
Energy selection         0.3.5.7.10.20.30.50.100.200.300.360 joule(nominal at a resistance of 50)
Charging time             Maximum 8 seconds to 360 Joules
Standard Adult/Pediatric Paddles   Reusable external adult paddles(pediatric paddles integrated)
Come with two battery for longer capacity

 AED Mode (Option)
 AED Function: Auto analyze and charge x3 with programmable auto energy level selection screen prompts and voice prompts.
 Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV ventricular tachycardia with rates >=140bpm and QRS complex wave duration >=140ms.
 Charge Control: Control on device front panel press key on paddle.
 Prompts: Voice and visual prompts.

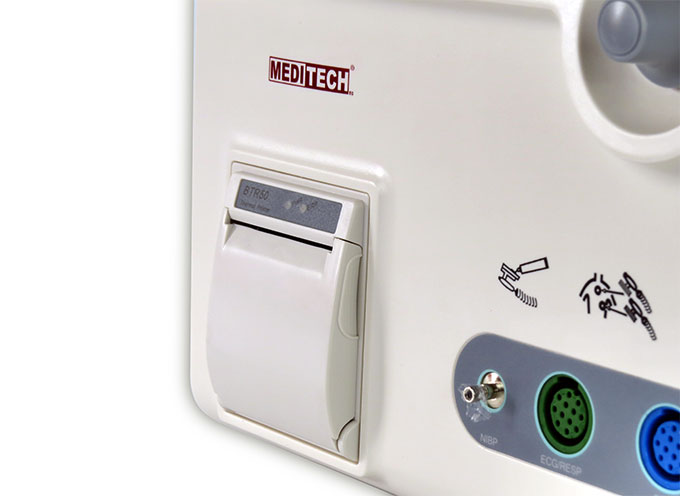

Recorder (Printer)(Option)
Paper: 50mm thermal.
Speed: 12.5mm/sec 25mm/sec 50mm/sec. User-selectable 6-second delay.
Printing Method: High-resolution thermal print head.
Print-out Modes: Manual or automatic user-configurable.
On/Off Control: Front panel and paddle.
Automatic Function: 9-seconds recording initiated by alarm activation or defibrillator charge or defibrillator discharge.

AED Mode (Option)
 AED Function: Auto analyze and charge x3 with programmable auto energy level selection screen prompts and voice prompts.
 Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV ventricular tachycardia with rates >=140bpm and QRS complex wave duration >=140ms.
 Charge Control: Control on device front panel press key on paddle.
 Prompts: Voice and visual prompts.

Defibrillator:
Defibrillator type        Manual Synchronized A synchronized
Output waveform       Biphasic technology
Energy accuracy        ∠+1%
Energy selection         0.3.5.7.10.20.30.50.100.200.300.360 joule(nominal at a resistance of 50)
Charging time            Maximum 8 seconds to 360 Joules
Standard Adult/Pediatric Paddles: Reusable external adult paddles(pediatric paddles integrated)

Patient Monitor:
7''TFT display

ECG:
ECG lead:                ⅠⅡⅢ a VR a VL a VF V1-V6

Pulse Rate:
Pulse range:             0-300bpm  Pulse accuracy: ±2bpm

NIBP:
Method:                     automatic oscillation
Working mode:          manual/automatic
Measure: adult:         10-250mmHg
Ement: pediatric:       10-200mmHg
Rage: neonatal:        10-135mmHg

TEMP:
Measurement range: 20-45。C

SpO2:
Pulse Oximetry (spO2)
Display:                     SpO2 value pulse histongram waveform Pulse
Range:                      0~99%for adult pediatric and neonatal patients
Probe:                       standard adult finger clip

 AED Mode (Option)
 AED Function: Auto analyze and charge x3 with programmable auto energy level selection screen prompts and voice prompts.
 Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV ventricular tachycardia with rates >=140bpm and QRS complex wave duration >=140ms.
 Charge Control: Control on device front panel press key on paddle.
 Prompts: Voice and visual prompts.

Recorder (Printer)(Option)
Paper: 50mm thermal.
Speed: 12.5mm/sec 25mm/sec 50mm/sec. User-selectable 6-second delay.
Printing Method: High-resolution thermal print head.
Print-out Modes: Manual or automatic user-configurable.
On/Off Control: Front panel and paddle.
Automatic Function: 9-seconds recording initiated by alarm activation or defibrillator charge or defibrillator discharge.



Standard:

ECG Cable (5 Leads) ...... 1Pcs
SpO2 Sensor    ................ 1Pcs
TEMP probe     ................ 1Pcs
NIBP Cuff   ...................... 1Pcs
NIBP Tube   ....................  1Pcs
Ground Wire    ................. 1Pcs
Battery   ........................... 2Pcs
Power cable  .................... 1Pcs
Fuse  ................................ 2Pcs
Cleaning Cloth  .................1Pcs

Options:

NIBP Cuff (infant 8 - 14 cm 5/Bag)
Paper Role
Thermal printer
Defibrillator Wall mounts (3 Models)
Defibrillator Trolley (5 Models)
Defibrillator carry bag


Product Features

    Defibrillator:
    Large TFT screen 7 inch
    Built in multi parameter patient monitor  ECG.SpO2.NIBP.RESP.PR.TEMP
    Defibrillator type           Manual Synchronized A synchronized
    Output waveform         Biphasic technology (optional)
    Energy accuracy          ∠+1%
    Energy selection         0.3.5.7.10.20.30.50.100.200.300.360 joule(nominal at a resistance of 50)
    Charging time             Maximum 8 seconds to 360 Joules
    Standard Adult/Pediatric Paddles   Reusable external adult paddles(pediatric paddles integrated)
    Come with two battery for longer capacity

     AED Mode (Option)
     AED Function: Auto analyze and charge x3 with programmable auto energy level selection screen prompts and voice prompts.
     Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV ventricular tachycardia with rates >=140bpm and QRS complex wave duration >=140ms.
     Charge Control: Control on device front panel press key on paddle.
     Prompts: Voice and visual prompts.

    Recorder (Printer)(Option)
    Paper: 50mm thermal.
    Speed: 12.5mm/sec 25mm/sec 50mm/sec. User-selectable 6-second delay.
    Printing Method: High-resolution thermal print head.
    Print-out Modes: Manual or automatic user-configurable.
    On/Off Control: Front panel and paddle.
    Automatic Function: 9-seconds recording initiated by alarm activation or defibrillator charge or defibrillator discharge.

    AED Mode (    Option)
     AED Function: Auto analyze and charge x3 with programmable auto energy level selection screen prompts and voice prompts.
     Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV ventricular tachycardia with rates >=140bpm and QRS complex wave duration >=140ms.
     Charge Control: Control on device front panel press key on paddle.
     Prompts: Voice and visual prompts.


Product Specifications

    Defibrillator:
    Defibrillator type        Manual Synchronized A synchronized
    Output waveform       Biphasic technology
    Energy accuracy        ∠+1%
    Energy selection         0.3.5.7.10.20.30.50.100.200.300.360 joule(nominal at a resistance of 50)
    Charging time            Maximum 8 seconds to 360 Joules
    Standard Adult/Pediatric Paddles: Reusable external adult paddles(pediatric paddles integrated)

    Patient Monitor:
    7''TFT display

    ECG:
    ECG lead:                ⅠⅡⅢ a VR a VL a VF V1-V6

    Pulse Rate:
    Pulse range:             0-300bpm  Pulse accuracy: ±2bpm

    NIBP:
    Method:                     automatic oscillation
    Working mode:          manual/automatic
    Measure: adult:         10-250mmHg
    Ement: pediatric:       10-200mmHg
    Rage: neonatal:        10-135mmHg

    TEMP:
    Measurement range: 20-45。C

    SpO2:
    Pulse Oximetry (spO2)
    Display:                     SpO2 value pulse histongram waveform Pulse
    Range:                      0~99%for adult pediatric and neonatal patients
    Probe:                       standard adult finger clip

     AED Mode (Option)
     AED Function: Auto analyze and charge x3 with programmable auto energy level selection screen prompts and voice prompts.
     Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV ventricular tachycardia with rates >=140bpm and QRS complex wave duration >=140ms.
     Charge Control: Control on device front panel press key on paddle.
     Prompts: Voice and visual prompts.

    Recorder (Printer)(Option)
    Paper: 50mm thermal.
    Speed: 12.5mm/sec 25mm/sec 50mm/sec. User-selectable 6-second delay.
    Printing Method: High-resolution thermal print head.
    Print-out Modes: Manual or automatic user-configurable.
    On/Off Control: Front panel and paddle.
    Automatic Function: 9-seconds recording initiated by alarm activation or defibrillator charge or defibrillator discharge.
