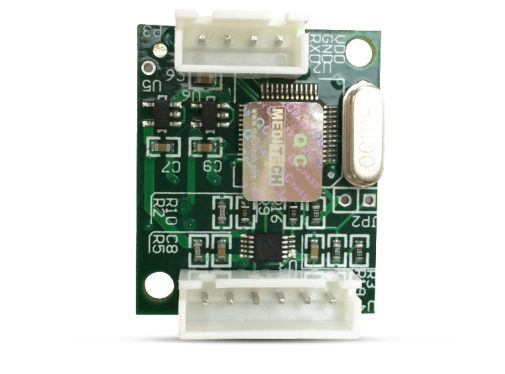

MD-100 Digital SpO2 module
MD-100 Digital SpO2 module  Low-power oxygen monitor module;
The SPO2 Module is used in the sampling inspection or measurement of the patient's oxygen saturation and pulse rate. As to the average oxygen saturation, low-power module can send instantaneous blood oxygen saturation.
MD-100 Digital SpO2 module  Low-power oxygen monitor module;
The SPO2 Module is used in the sampling inspection or measurement of the patient's oxygen saturation and pulse rate. As to the average oxygen saturation, low-power module can send instantaneous blood oxygen saturation.
Read More

Advanced DSP algorithm minishes the influence of motion artifact
All digital signal processing improves accuracy of low per-fusion
Small size, easy to be assembled
Range:
Pulse rate: 30 ~ 250 bpm
SpO2: 0 ~ 100%
Weak perfusion 0.1%
Resolution(1SD)

Pulse rate: (30~250BPM)
+2bpm or -2bpm Normal
+3bpm or -3bpm Motion or low perfusion

SpO2: (70~100%)
+2% or -2% Normal
+3% or -3%Motion or low perfusion
Below 70% Not specified

Environmental Requirements
Operating temperature: 0~45 °C
Storage temperature: -20~60 °C

Operating  Humidity:30~95%
Storage Humidity:10~100%

Operating Altitude:-500~5000m
Storage Altitude:-500~10000m

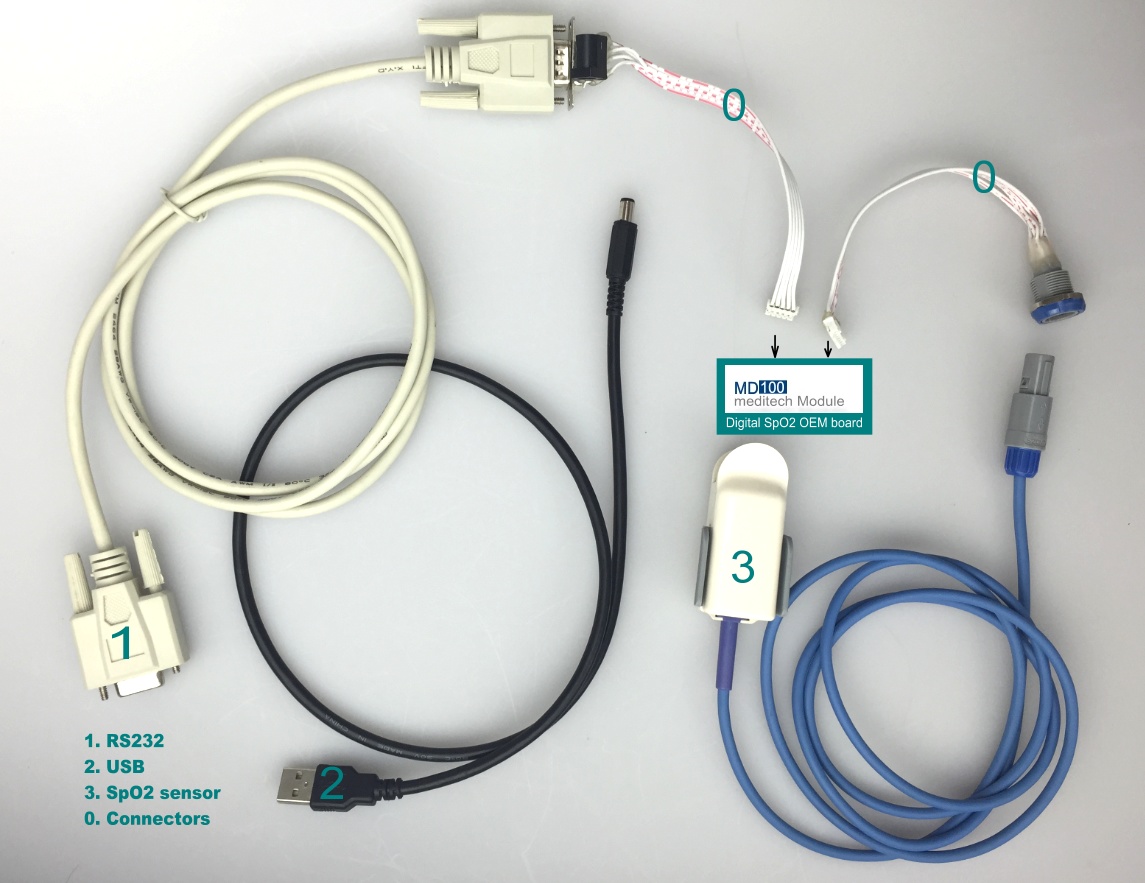

Options:

SpO2 Cable (New born)
SpO2 Cable (Adult finger clip)
SpO2 Cable (Child finger clip)
SpO2 Cable (adult soft tip)
SpO2 Cable (Child soft tip)
SpO2 Cable (nfant soft tip)
SpO2 Cable (Neonate silicone wrap)
SpO2 Cable (multi-site Y type)
SpO2 Cable (with separate wrap)
SpO2 Cable (adult ear clip)
SpO2 Cable (veterinary tongue  clip)
SpO2 Cable (multi-site clip)
SpO2 Cable (adult Forehead)
SpO2 Cable (multi-site Y type with foam wrap)
PC Connector (RS232)
USB Power Supplier
Female SpO2 Socket

SpO2 module


Product Features



    Advanced DSP algorithm minishes the influence of motion artifact
    All digital signal processing improves accuracy of low per-fusion
    Small size, easy to be assembled

Product Specifications

    Range:
    Pulse rate: 30 ~ 250 bpm
    SpO2: 0 ~ 100%
    Weak perfusion 0.1%
    Resolution(1SD)

    Pulse rate: (30~250BPM)
    +2bpm or -2bpm Normal
    +3bpm or -3bpm Motion or low perfusion

    SpO2: (70~100%)
    +2% or -2% Normal
    +3% or -3%Motion or low perfusion
    Below 70% Not specified

    Environmental Requirements
    Operating temperature: 0~45 °C
    Storage temperature: -20~60 °C

    Operating  Humidity:30~95%
    Storage Humidity:10~100%

    Operating Altitude:-500~5000m
    Storage Altitude:-500~10000m


Related Accessories

    Options:

    SpO2 Cable (New born)
    SpO2 Cable (Adult finger clip)
    SpO2 Cable (Child finger clip)
    SpO2 Cable (adult soft tip)
    SpO2 Cable (Child soft tip)
    SpO2 Cable (nfant soft tip)
    SpO2 Cable (Neonate silicone wrap)
    SpO2 Cable (multi-site Y type)
    SpO2 Cable (with separate wrap)
    SpO2 Cable (adult ear clip)
    SpO2 Cable (veterinary tongue  clip)
    SpO2 Cable (multi-site clip)
    SpO2 Cable (adult Forehead)
    SpO2 Cable (multi-site Y type with foam wrap)
    PC Connector (RS232)
    USB Power Supplier
    Female SpO2 Socket

    SpO2 module
