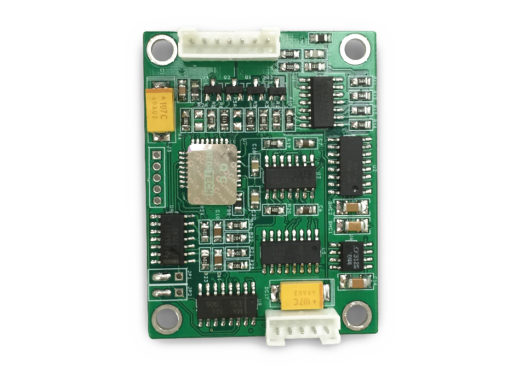

MD-200 Analog SpO2 module
SpO2 Module Compatible with BCI (probe & Transfer Protocol ),high accuracy and small in size
SpO2 Module Compatible with BCI (probe & Transfer Protocol ),high accuracy and small in size
Product Features
Small size and easy installation; reliability high accuracy
Enhanced signal processing capabilities reduced per-fusion of human movement and the impact of weak
Applicable to adults infants and young children and newborn
Operating voltage 3.3 v Low-Voltage
Can display maps and pulse oxygen column
Transfer Protocol BCI compatible
Compatible with BCI probe
Product Specifications
Related Accessories
Product Features
Small size and easy installation; reliability high accuracy
Enhanced signal processing capabilities reduced per-fusion of human movement and the impact of weak
Applicable to adults infants and young children and newborn
Operating voltage 3.3 v Low-Voltage
Can display maps and pulse oxygen column
Transfer Protocol BCI compatible
Compatible with BCI probe
Product Specifications
Oxygen saturation BF – type
Power Requirements
Operating voltage 5V ±0.1V DC
Power 40mA
Environmental conditions
Operating temperature 5-50℃
Storage temperature -20℃ - +70 ℃
Relative humidity 0-85% (non-condensing)
Size 40 x 52 x 10mm
SPO2
Measuring range 50 -100% SPO2
Measurement accuracy ±2 @ 50-100% SPO2
Less than 50% have not been defined
Pulse rate
Measuring range 30-235 times / min
Measurement accuracy Greater than ±2 times / min or ±2%
Bar chart 0-8
Serial transmission logic capacity TTL/RS232 Serial Port
Standards
IEC60601-1 SPO2: BF-type
IEC60601-1-27: 1994 EN865
ANSI/AAMI SP10: 1992 EN12470-4:2001
ANSI/AAMI EC 13-92
Transfer Protocol BCI compatible. Compatible with BCI probe
