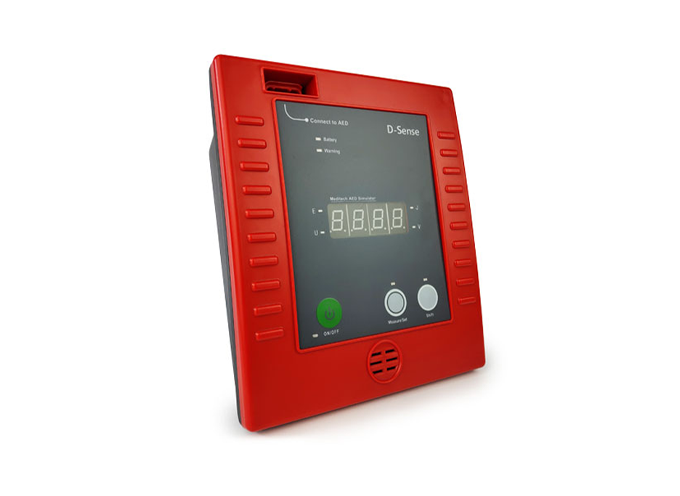

The Meditech D-Sense® Automated External Defibrillator Simulator
can simulate a variety of normal and abnormal ECG signals for defibrillator testing, test the defibrillator's ability to analyze ECG signals, and display the defibrillator's primary discharge energy and power via the digital tube LED. Discharge voltage values, selection of ECG signals for the various tests, and display of voltage or primary discharge energy are done through button operation. The overall operation of the device is simple and convenient.
The accuracy of its performance parameters related to the safety of patients, must be through the appropriate detection equipment AED production of the test performance parameters and periodic verification of performance.

Product Features

    Safe and effective operation
    Large LED display for:
    Energy(J) mode, Voltage(V) mode
    Compact and easy to use
    Works with LiMnO2 non rechargeable battery
    Simulates five types of waveforms
    Heart rate is 60 bpm
    Heart rate is 90 bpm
    Ventricular Fibrillation ECG
    Tachycardia ECG
    Sinus waveform
    Suitable for all models of AED defibrillators

Product Specifications

    Internal test load: Ohm ± 1%
    Pulse width: ms

    Energy
    Range: 2 - 250 joules
    Resolution: Joule
    Accuracy: ± 2% measured value ± 2 joules

    Waveform simulation:
    VFIB - ventricular fibrillation
    VTAC - ventricular tachycardia at 140 beats per minute
    NSR - normal sinus rhythm at 90 BPM

    Display: 4-digit inch display LED
    Power supply: LiMnO2 12 volt
    Weight: 1 Kg
    Dimensions: 256x220x(L:65 H:80)mm

Related Accessories

    Standard:

    Connector  (AED-Dsense) .... 1Pcs
    Battery   ................................ 1Pcs
    Case  .................................... 1Pcs
    Cleaning Cloth  ..................... 1Pcs
