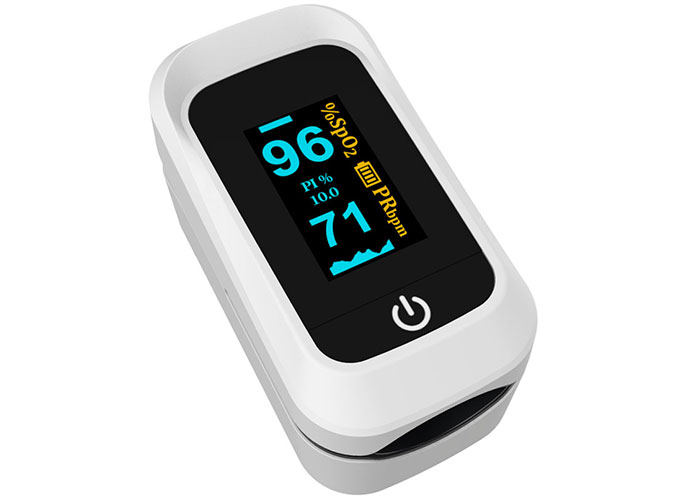

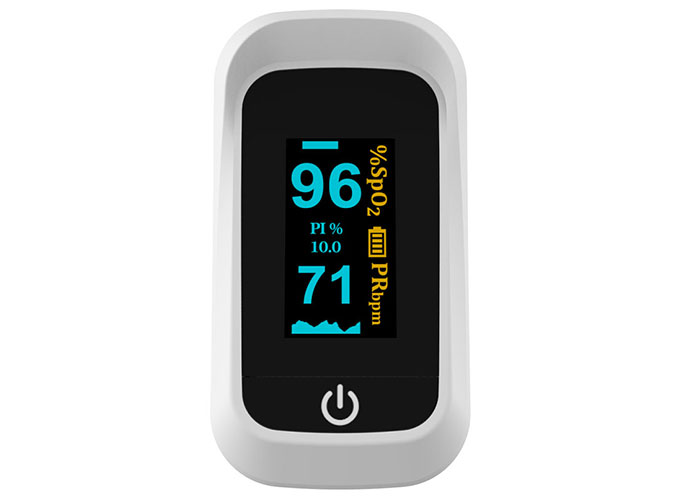

Small in size, and easy to carry
Color OLED monitor, 4 different display modes
Pulse histogram and 4 kinds Spo2 wave display
Easy to use & high accuracy and repetition
Low voltage alarm display
Pulse oximeter perfusion index (PI)
Auto power-off after 20 seconds without signal
Runs on standard AAA batteries and continuous working time is 30 hours
Light weight of 55g, batteries included
Alarm setting: (SpO2   Hi/Lo)   (PR     Hi/Lo)

Screen 1
Sounds Setup: To go to the other menu
SpO2 Alm Hi:   Set hi levels of oxygen percentage
SpO2 Alm Lo:  Set low levels of oxygen percentage
PR Alm Hi:  Set high levels of pulse rate
PR Alm Lo:  Set low levels of pulse rate Switch
+/- :           Between going higher or lower
Exit :         To exit the menu

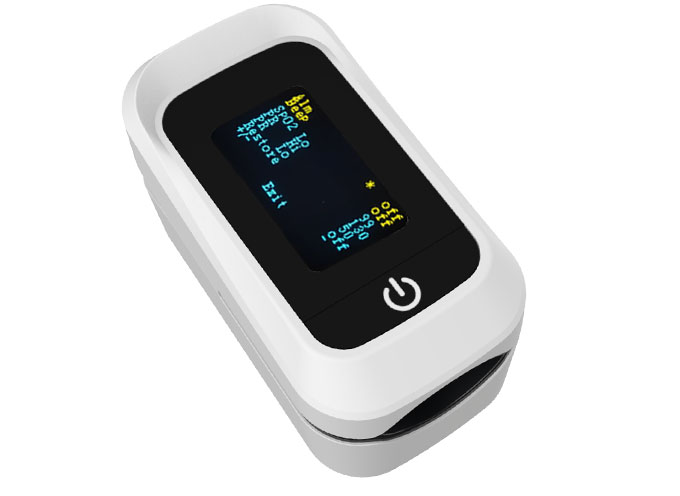

Screen 2
Alm:        To switch the alarm on or off
Beep:      To switch the pulse rate alarm on or off
Restore : To restore back to factory settings
Exit:        To exit the menu

Display
OLED display
4 display mode
Parameters: SpO2, PR, Pleth bar.
Alarm Settings: Information &Low Battery

Patient Range
Adult and Pediatric

SpO2
Range 0%-99%
Resolution 1%
Accuracy ±2% in stage of 70 % ,0%-69%: unspecified
Method: Dual wavelength LED

Heart (Pulse) Rate
Range: 30-240 bpm
Resolution: 1bpm Accuracy, ±2bpm or ±2%
Environmental
Operating Temperature : 5℃-40℃
Storage Temperature: -10℃ - 40℃
Operating Humidity: 15%RH - 95%RH
Storage Humidity: 10%RH - 95%RH

Classification
Type of protection: internally powered equipment
Safety:  IEC Standard 61601-1-1

Mechanical
Size:   58(L) × 32(W) × 30(H) mm
Weight : 50g (including 2 batteries)

Battery 2 AAA size 1.5V Alkaline Batteries or 2 AAA 1.5V rechargeable batteries

Operation time
minimum 40 hours for normal Operation

Standards:

Hang rope   ...................... 1Pcs
AAA Battery  .................... 1Pcs

Options:

Nylon Case
Hard Case

Product Features

    Small in size, and easy to carry
    Color OLED monitor, 4 different display modes
    Pulse histogram and 4 kinds Spo2 wave display
    Easy to use & high accuracy and repetition
    Low voltage alarm display
    Pulse oximeter perfusion index (PI)
    Auto power-off after 20 seconds without signal
    Runs on standard AAA batteries and continuous working time is 30 hours
    Light weight of 55g, batteries included
    Alarm setting: (SpO2   Hi/Lo)   (PR     Hi/Lo)

    Screen 1
    Sounds Setup: To go to the other menu
    SpO2 Alm Hi:   Set hi levels of oxygen percentage
    SpO2 Alm Lo:  Set low levels of oxygen percentage
    PR Alm Hi:  Set high levels of pulse rate
    PR Alm Lo:  Set low levels of pulse rate Switch
    +/- :           Between going higher or lower
    Exit :         To exit the menu

    Screen 2
    Alm:        To switch the alarm on or off
    Beep:      To switch the pulse rate alarm on or off
    Restore : To restore back to factory settings
    Exit:        To exit the menu

Product Specifications

    Display
    OLED display
    4 display mode
    Parameters: SpO2, PR, Pleth bar.
    Alarm Settings: Information &Low Battery

    Patient Range
    Adult and Pediatric

    SpO2
    Range 0%-99%
    Resolution 1%
    Accuracy ±2% in stage of 70 % ,0%-69%: unspecified
    Method: Dual wavelength LED

    Heart (Pulse) Rate
    Range: 30-240 bpm
    Resolution: 1bpm Accuracy, ±2bpm or ±2%
    Environmental
    Operating Temperature : 5℃-40℃
    Storage Temperature: -10℃ - 40℃
    Operating Humidity: 15%RH - 95%RH
    Storage Humidity: 10%RH - 95%RH

    Classification
    Type of protection: internally powered equipment
    Safety:  IEC Standard 61601-1-1

    Mechanical
    Size:   58(L) × 32(W) × 30(H) mm
    Weight : 50g (including 2 batteries)

    Battery 2 AAA size 1.5V Alkaline Batteries or 2 AAA 1.5V rechargeable batteries

    Operation time
    minimum 40 hours for normal Operation
