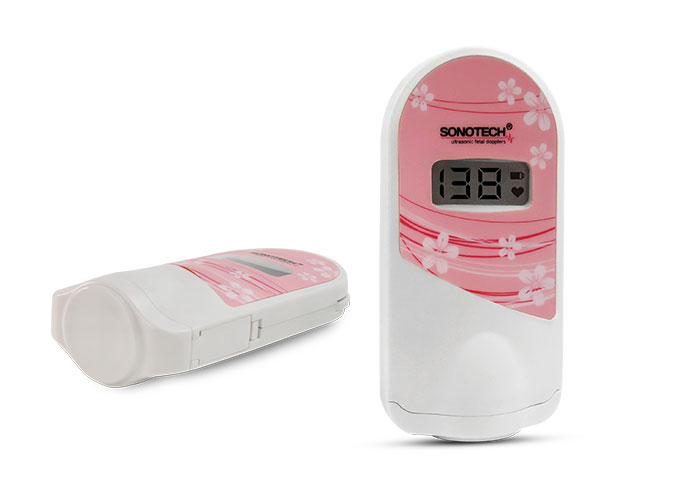

Sonotech® eXtra Fetal Heart Doppler
Designed as an ultrasound probe to find FHB easily and conveniently for pregnant women. Notice labels are molded, not printed, and will not be erased by use. Headphone quality for clear sound and less noise Optional phone cable is compatible with almost all apps, so you can record with your phone and use the apps' functions Luxurious packaging with magnetic closure for beautiful appearance and better protection
Softcase available in two colours" purple & grey"

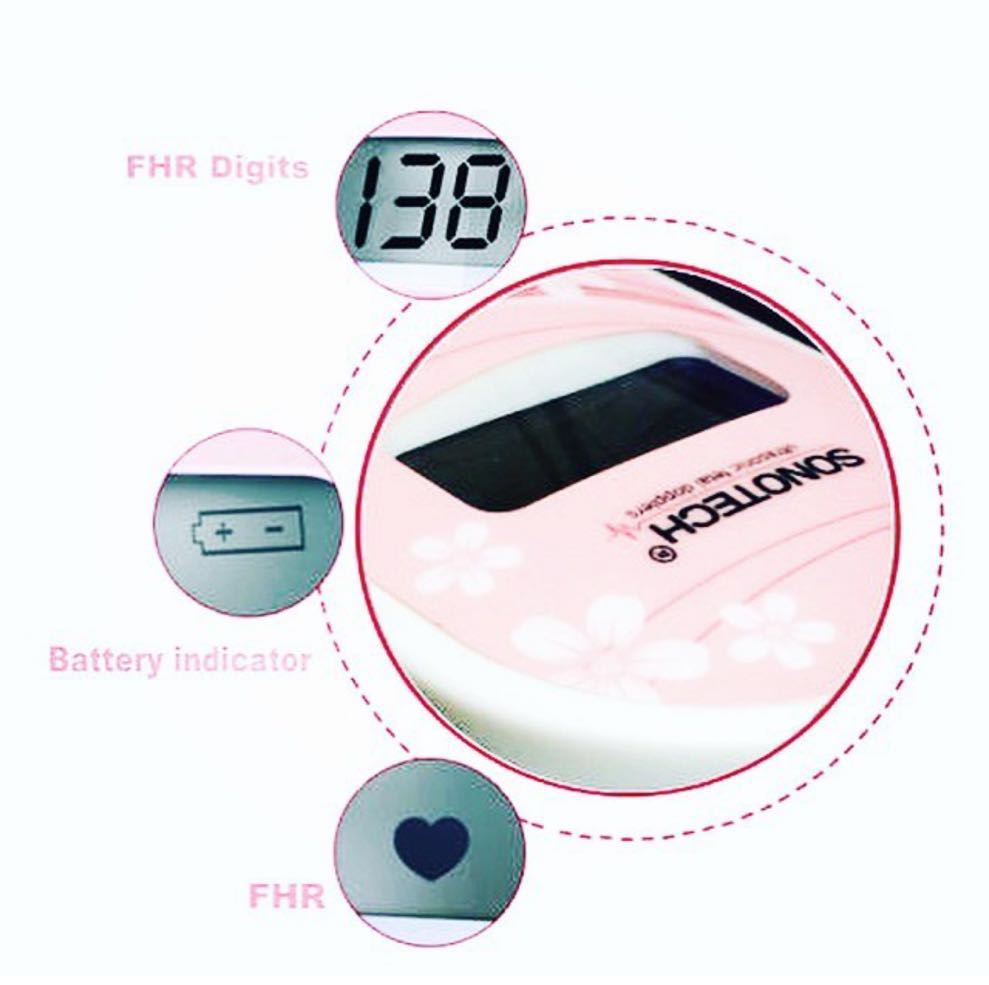

Small indicator of the heartbeat of the fetus. Easy to use Heart rate display(25*14 mm) Clear sound and less noise Can be hung with a hanger Automatic freezing of the indicator after removing from the body Light weight of 80g, batteries included Runs on AAA batteries and continuous working time is 18 hours Options: Phone cord, mini speaker, rechargeable battery and charger, small bag (pouch)
FHR power FHR measurement range: 50~240BPM (BPM: beat per minute) Resolution: 1BPM Accuracy: ±2BPM Power consumption: < 0.8W Auto Shut- OFF: After 1 minute without signal, the device will turn off automatically. Recommended battery type: Two pieces of 1.5V DC batteries (SIZE AA LR6). Ultrasonic Sensor: Nominal frequency: 2.0MHz, Working frequency: 2.0MHz±10% P -: < 0.5MPa Iob: < 10mW/cm2 Ispta: < 50mW/cm2 Intensity of ultrasound power: Isata < 5 mW/cm2 Output power of ultrasound: P < 10 mW Working mode: Continuous wave Doppler Effective radiated area of the transducer: 157mm2±15% Temperature: +5℃～+40℃ Humidity: ≤80％ Atmospheric pressure: 70 kPa～l06kPa Transportation and storage: Temperature: -10℃～+55℃ Humidity: ≤93％ Atmospheric pressure: 50 kPa～l06kPa
Standard:
Audio stereo Cable .................. 1Pcs
AAA Battery ............................... 2PcsHeadphone ............................... 1Pcs
Cleaning Cloth .......................... 1Pcs

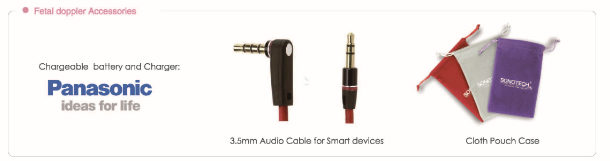

Options:
External mini Speakers
Carry Case
Audio smart device Cable (Android .iOs)
Audio smart device Cable (Android .iOs)
Rechargable Battery
Charger (Panasonic)
Charger (Panasonic)
Product Features
Small indicator of the heartbeat of the fetus. Easy to use Heart rate display(25*14 mm) Clear sound and less noise Can be hung with a hanger Automatic freezing of the indicator after removing from the body Light weight of 80g, batteries included Runs on AAA batteries and continuous working time is 18 hours Options: Phone cord, mini speaker, rechargeable battery and charger, small bag (pouch)
Product Specifications
FHR power FHR measurement range: 50~240BPM (BPM: beat per minute) Resolution: 1BPM Accuracy: ±2BPM Power consumption: < 0.8W Auto Shut- OFF: After 1 minute without signal, the device will turn off automatically. Recommended battery type: Two pieces of 1.5V DC batteries (SIZE AA LR6). Ultrasonic Sensor: Nominal frequency: 2.0MHz, Working frequency: 2.0MHz±10% P -: < 0.5MPa Iob: < 10mW/cm2 Ispta: < 50mW/cm2 Intensity of ultrasound power: Isata < 5 mW/cm2 Output power of ultrasound: P < 10 mW Working mode: Continuous wave Doppler Effective radiated area of the transducer: 157mm2±15% Temperature: +5℃～+40℃ Humidity: ≤80％ Atmospheric pressure: 70 kPa～l06kPa Transportation and storage: Temperature: -10℃～+55℃ Humidity: ≤93％ Atmospheric pressure: 50 kPa～l06kPa
Related Accessories
Related items
Sonotech® eXtra
Sonotech eXtra is a professional designed fetal Doppler, It applies one-button operation function Doppler, and the FHR value is displayed on the LCD monitor.
