A multi-function clamp for veterinarian, mainly includes upper clip and lower clip; the clamp body is composed by upper clip, lower clip, bolt and torsional spring, wherein the foresaid clamp body installed with connection assembly that has connecting lead wires, and the connection assembly has several installation sections coordinates with the lead wire plug. By adopting the compatibility design, the multi-function clamp for veterinarian could apply to wider areas, a pet clinic equipped with the multi-function clamp for veterinarian is applicable even using the probe-type lead wires, the banana plug lead wires, the snap-type lead wires and the clip-type lead wires simultaneously, which greatly decreases the procurement cost for equipment and accessories, and easier to be operated. Furthermore, by adopting the anti-slip design, the multi-function clamp for veterinarian will improve remarkably for the matter the clamp drops off from the operators or the animal skins, which saves time in operation.
The invention relates to a multi-function clamp, especially to a clamp for veterinarian that is compatible with many kinds of lead wires and applied to the equipment such as veterinary electrocardiograph, veterinary monitor and so on.

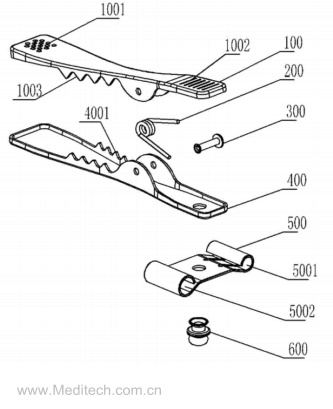

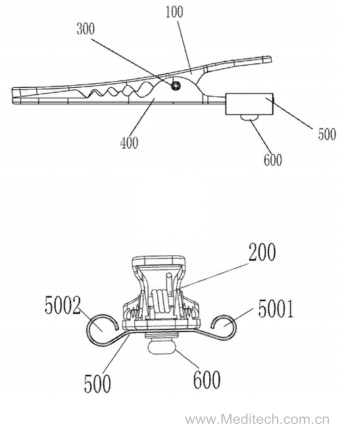

The multi-function clamp for veterinarian as shown in pics is comprised by upper clip 100, lower clip 400, bolt 300, torsional spring 200 and the connection assembly, where, the connection assembly includes a double-headed electrode socket 500 and rivet 600, wherein the bottom of the rivet 600 has a snap plug; when assembling the clamp for veterinarian, lay flat the lower clip 400, using the rivet 600 to press-rivet the double-headed electrode socket 500 in the lower clip 400, and put the torsional spring 200 in the lower clip 400, then cover the upper clip 100, pass through the bolt 300, and then press-rivet the upper clip 100 and the lower clip 400. There into, the tail end of the upper clip 100 has wavy stripes 1002, for which the main purpose of the stripes is to prevent the clamp drop from the users; the front end of the upper clip 100 has multiple circular dots 1001, and between the upper clip 100 and the lower clip 400 has tooth 1003 and tooth 4001 in separately to prevent the clamp loosing from the animal skins. The double-headed electrode socket 500 of the embodiment has probe holes 5001 with a diameter of 3 mm and probe holes 5002 with a diameter of 4 mm, and at the bottom of the snap-rivet 600 has snap plug 63 with a diameter of 4 mm; when the user using the ECG cable, if it is a probe-type with a diameter of 3 mm, insert the lead wires into the probe holes 5001 for normal usage; if the ECG cable is Φ4 mm banana plug type, insert the lead wires into the probe holes 5002 with a diameter of 4 mm for normal usage; if the ECG cable is snap-type with a diameter of 4 mm, insert the lead wires into the snap plug with a diameter of 4 mm for normal usage.
|
