EtCO2 module and Capnography monitor Accessories

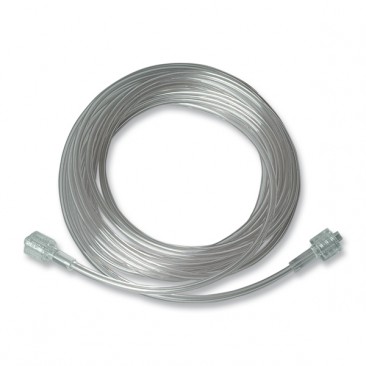

EtCO2 Sampling Line (Male/Male)
PVC sampling lines for measurement of end-tidal CO2
Coextruded polyethylene sampling lines for precision measurement of gases
All gas sampling lines include a male luer connector on one end for connection to the patient circuit gas sampling port
Choice of male or female luer for machine fitting.

Round Sampline line ,Use for : ET7 ,Capnoxi ,MD90Et

Strait Sampline line ,Use for : Capnoxi plus

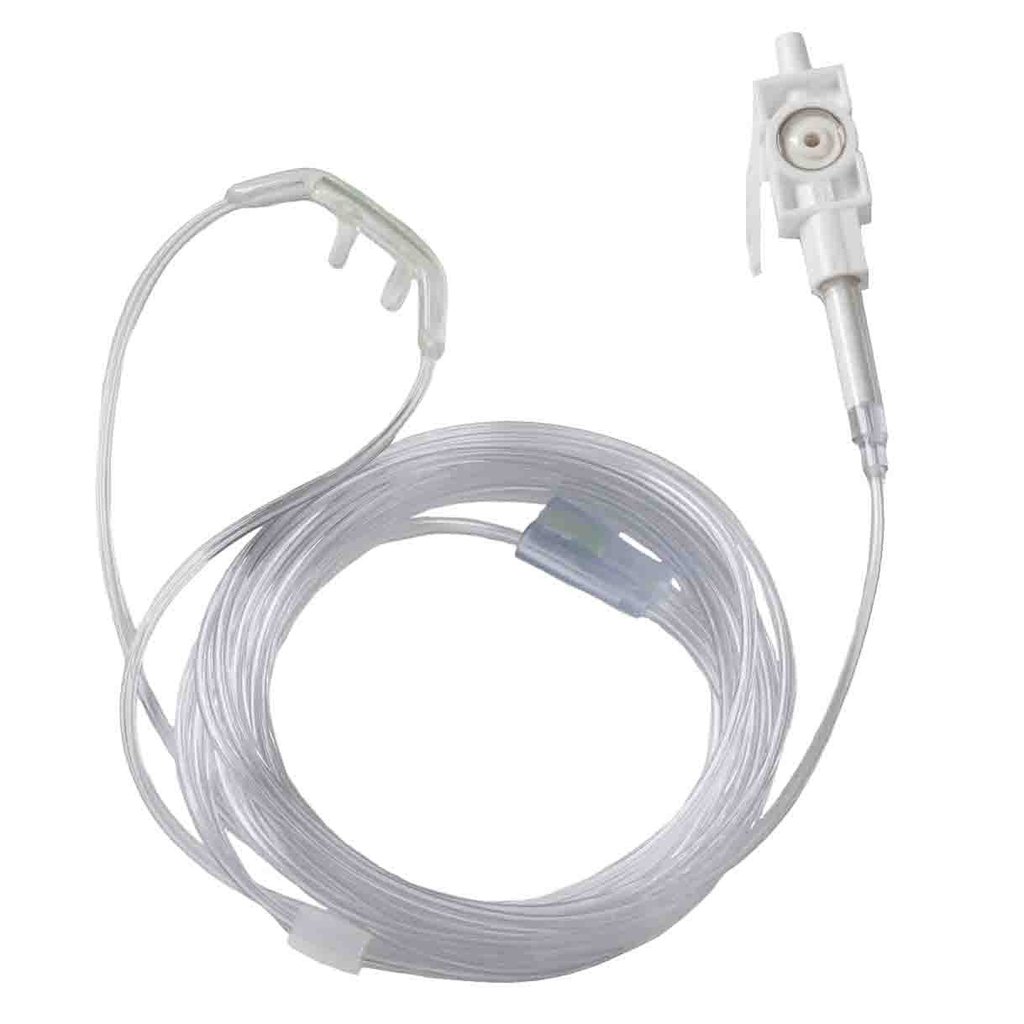

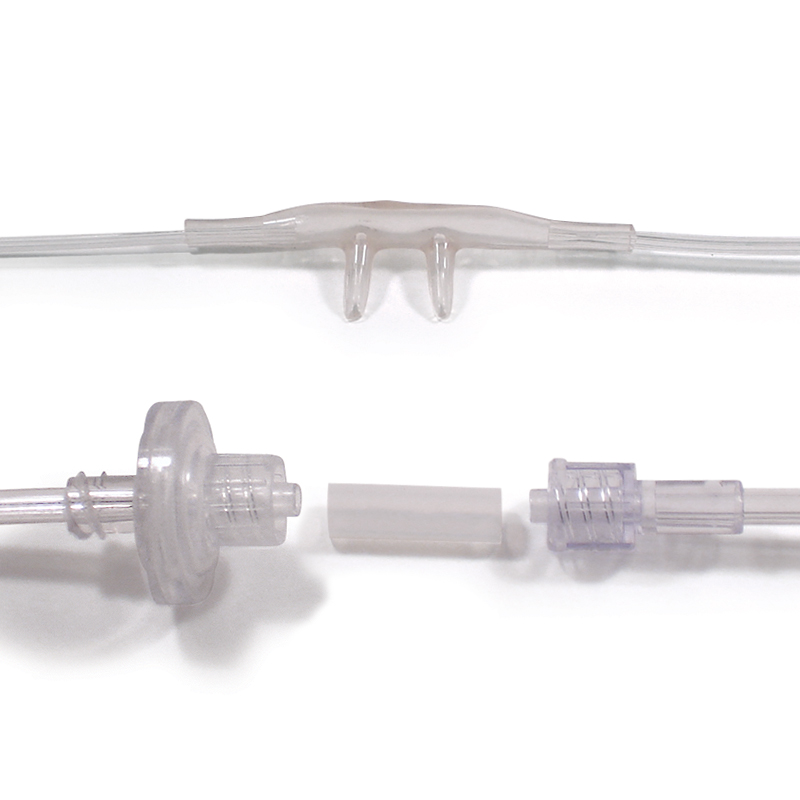

Nasal Tube
These Latex-Free Nasal Cannulas are comfortable and economical.
They are made of extra-soft disposable latex-free material.
Each cannula is crush resistant and fits comfortably over the ears.
Choose from various sizes and between curved or straight cannulas.

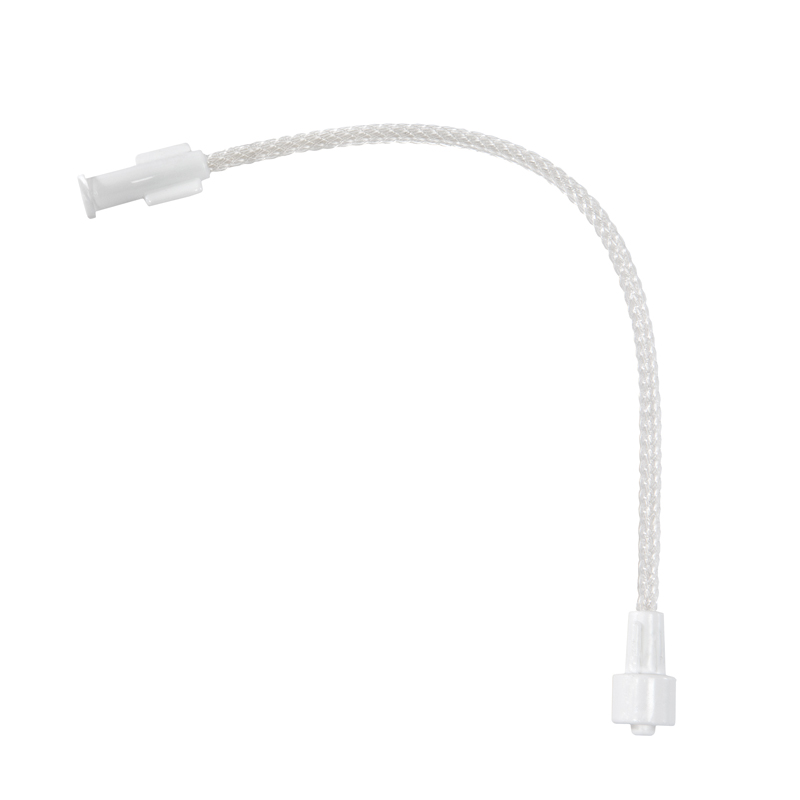

Nafion Tube
Nafion tubing is a highly selective, semi-permeable membrane to water vapor. If gases inside Nafion tubing are wetter than gases surrounding the tubing, drying will occur. If the surrounding gases are wetter, humidification will occur. In normal use, a portion of Nafion tubing is used as a portion of the tube between a gas sample stream and a sensor. If the sample stream is much wetter than ambient air (such as breath samples), the sample falls to ambient humidity. If the sample stream inside is much drier than ambient air (such as calibration cylinder gases), the sample rises to ambient humidity.
Removes water vapor from gas samples
Does not affect gas samples
Used for capnography, measuring ETCO2
Because Nafion uses sulfur ions to selectively transport water molecules out of the tubing, it is not gas permeable. Therefore, Nafion can be used successfully to dry virtually any gas.  Naphion is also recommended to be used with water traps & hydrophobic filters that are included with all sampling devices.  Install the tubing after the filters for optimum performance & protection of the sensor.

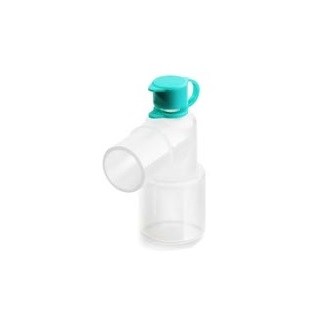

Airway Adapter

Elbow airway adapter Sidestream CO2 Gas Monitoring supplies, disposable, anesthetic

Water-trap Column
